Permanent Magnetic Brushless dc motors

Permanent Magnetic Brushless dc motors/drivers

We are manufacturing general-purpose brushless dc motors with power range from 5W to 500W, and the voltage range from 12V to 36V DC. It has been widely used for many applications, eg., auto industry, self-control system, battery powered bikes, scooters, electrical appliances etc. It has better performances than other traditional dc motors and ordinary AC motors.

Product Features:

Long working life (>10,000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>75%)
High reliability
Low Price

Technical specifications:

Rated voltage : 12/24/36 VDC
Rated power : 5-500W
Rated speed: 2000-30000 rpm
Stepless speed control, dual-direction

DC Brushless medium speed motor specification:

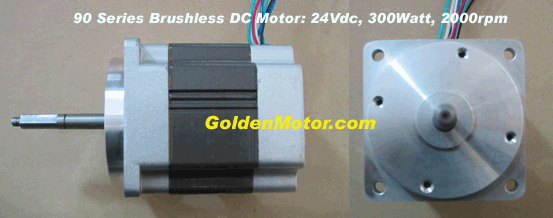

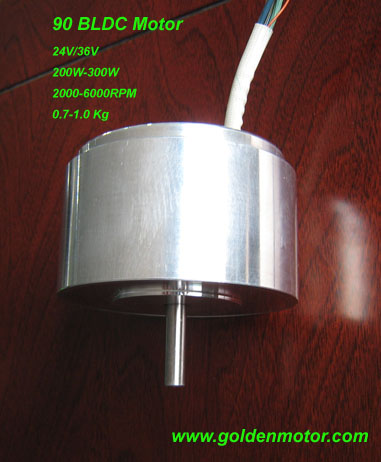

Model	38 series	45 series	70 series	90 series
Voltage (VDC)	12, 24	12, 24	24, 36	24, 36
Power (W)**	2-20	4-80	50-200	200-500
Torque (g*cm)	100-300	200-500	2500-6700	10000-250000
Speed (rpm)	2000-6000	2000-6000	2000-6000	2000-6000
Cool mode	Self-cool

**1HP = 745.7W

Motor performance curve Dimensional Drawing

Click to view drawing

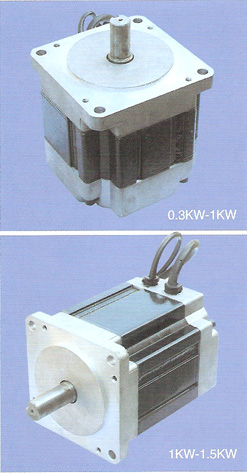

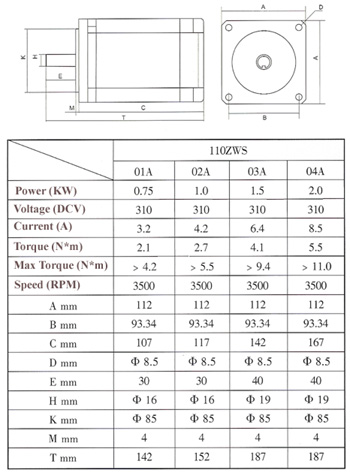

High Voltage BLDC Motors (90Vdc/110Vdc/220Vdc/310Vdc):

These high efficiency stepless BLDC motors are designed to use AC main power supply to drive your applications without costly AC/DC transformer.

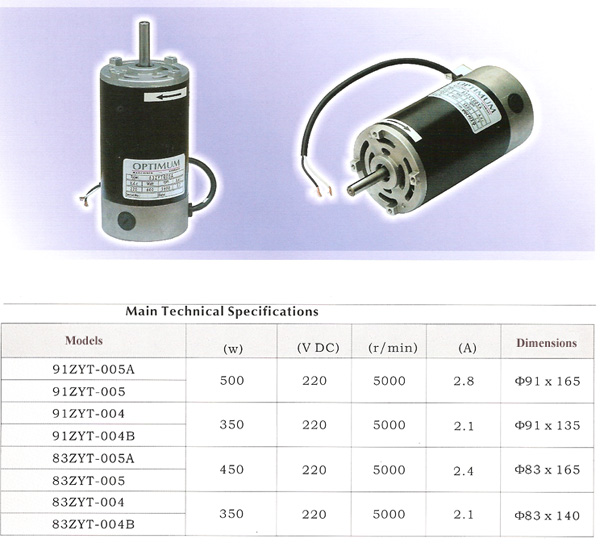

High Voltage Brushed Motors:

These high efficiency brushed DC motors are designed to use AC main power supply to drive your applications economically without costly AC/DC transformer.

* We are willing to make customized motors to meet your application's requirements..
