Most Powerful, Efficient, Clean and Quiet

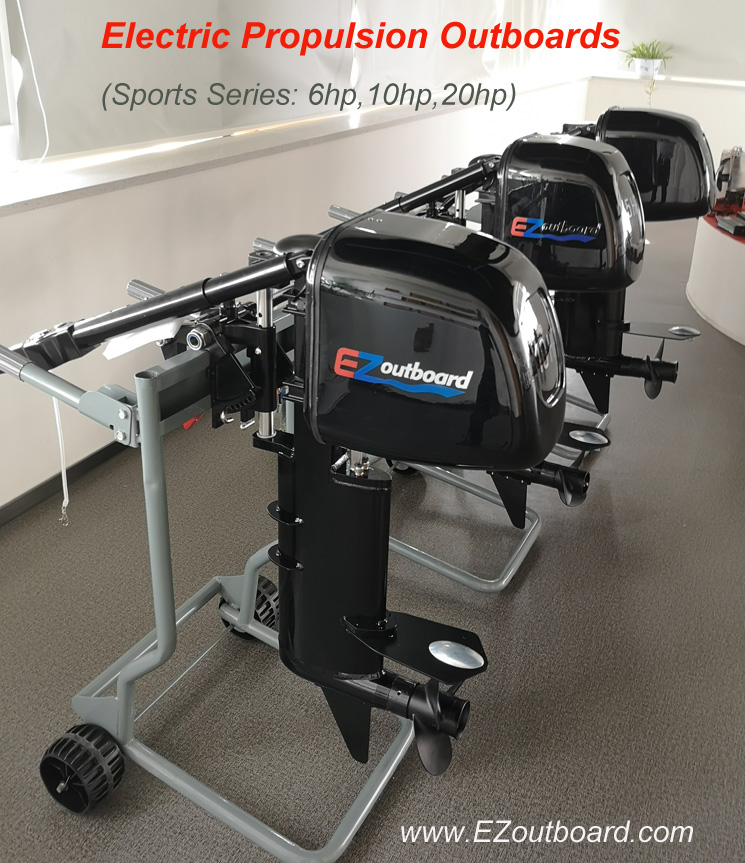

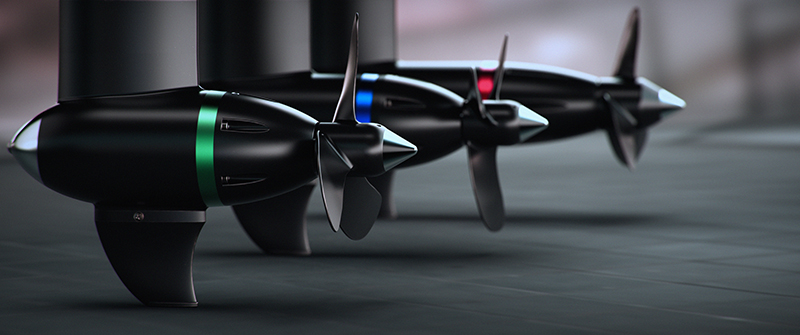

Electric Propulsion Outboards (3HP - 50 HP)

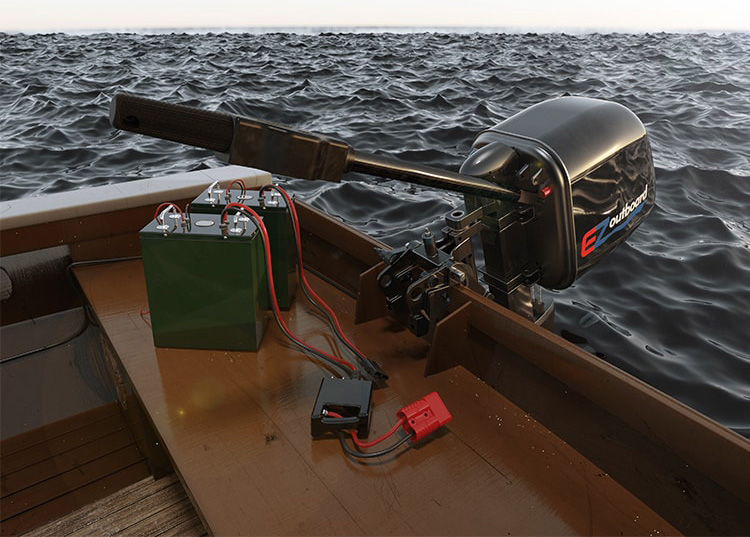

A growing number of boat owners favours electric propulsion to power their dayboats, yachts, and cruisers. Electric motors are quiet, clean, reliable and economical to run. Electric propulsion makes for a very pleasant trip thanks to the absence of noise, fumes or vibrations, and the bilge stays nice and clean with no oil or grease fouling the timber. Batteries offer the option of recharging with renewable energy (solar and wind) making a boat potentially energy independent. With only few moving parts there is little that can wear out or break down, making electric motors a reliable option and virtually maintenance free.

With Golden Motor's leading BLDC motor and controller technology, you could replace your gasoline outboards into electric propulsion outboards quick and easy!


Electric propulsion outboard, electric outboard conversion, outboard conversion kit, electric boat engine, Electric boat conversion, electric outboard, electric outboard motor, electric inboard motor Electric propulsion outboard, electric outboard conversion, outboard conversion kit, electric boat engine, Electric boat conversion, electric outboard, electric outboard motor, electric inboard motor

Buy Complete Electric Propulsion Outboards (shipping via sea or land)

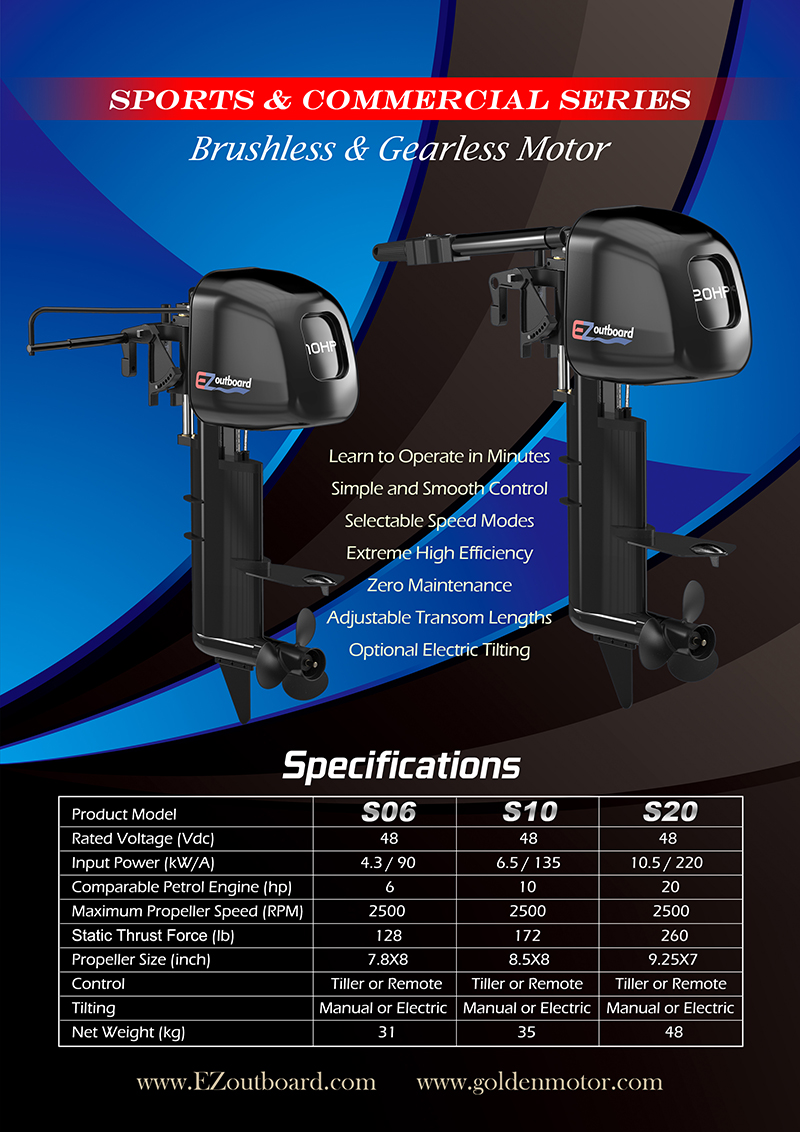

EPO-06HP/L
6hp (Long Shaft) $2150

EPO-06HP/S
6hp (Short Shaft) $2110

EPO-10HP/L
10hp (Long Shaft) $2960

EPO-10HP/S
10hp (Short Shaft) $2880

EPO-15HP/L
15hp (Long Shaft) $3850

EPO-15HP/S
15hp (Short Shaft) $3890

EPO-20HP/L
20hp (Long Shaft) $4580

EPO-20HP/S
20hp (Short Shaft) $4530

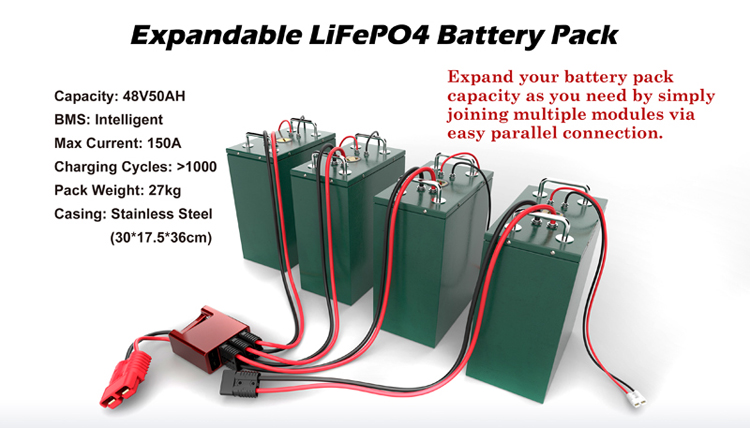

Note: battery pack and charger are excluded.
Weight: 10hp: 42kg(N.W.)/49kg(G.W.); 15/20hp: 48kg(N.W.)/55kg(G.W)

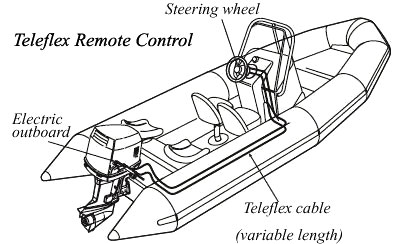

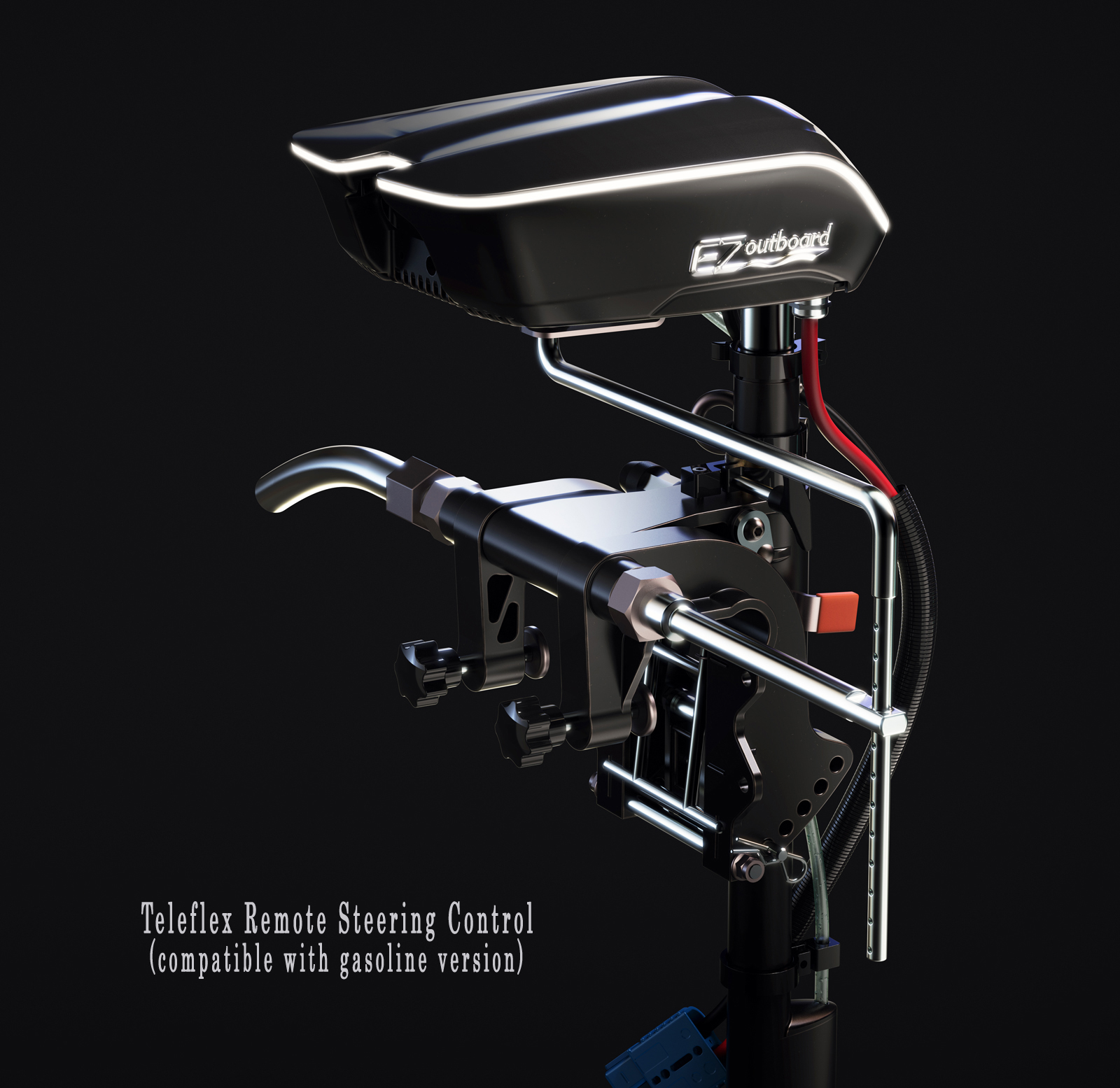

Teleflex Remote Control Setup is available as optional items upon request.
(teleflex cabling setup, steering wheel, speed control throttle with forward/reverse)


Buy Accessories for Teleflex/Remote Control (only available for 6hp and up):

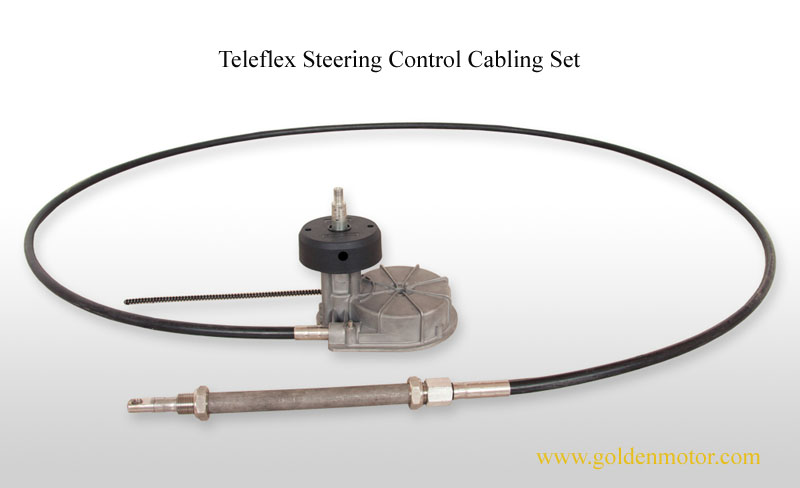

Teleflex Cabling Set, Stainless Steering Wheel, Remote Control Joystick Set




TRC-010
Joystick Throttle Set: $258

TRC-020
Stainless Steering Wheel: $155

TRC-030
Teleflex Cabling Set (3.0m): $219

TRC-030
Teleflex Cabling Set (4.0m): $229

TRC-030
Teleflex Cabling Set (5.0m): $239

TRC-030
Teleflex Cabling Set (6.0m): $249

TRC-030
Teleflex Cabling Set (7.0m): $259

TRC-030
Teleflex Cabling Set (8.0m): $269

TRC-030
Teleflex Cabling Set (9.0m): $279

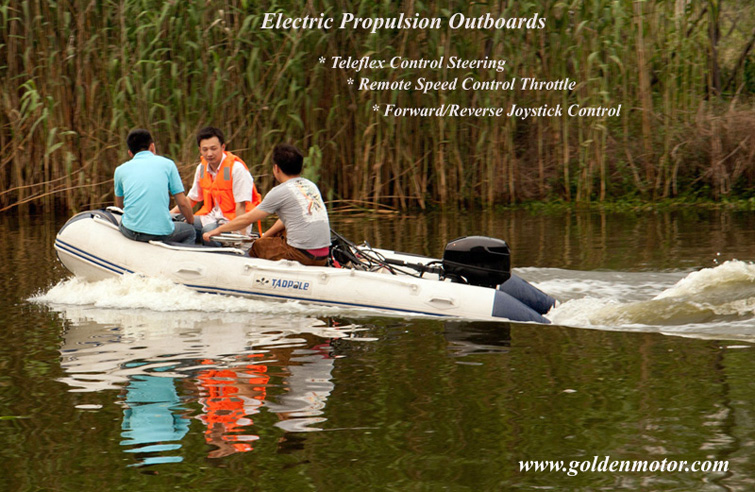

Electric Propulsion Outboard Demo Video
(Outboard Teleflex Remote Control -- 20hp)


Right Click to Download Boat Testing Video(.mp4 format, 25MB)


Key Components for Electric Outboard and Inboard Applications
Outboard conversion kits -- Drive you motorboat up to 20mph!




CE Certified BLDC Motors by SGS!
HPM10K (10KW) CE Certificate   HPM10K (10KW) CE-EMC Report
HPM5000B (5KW) CE Certificate   HPM5000B (5KW) CE-EMC Report

3D Motor Drawings( .IGS format):
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling   HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling

Motor Drawings(.PDF format):
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling
HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling

Motor Performance Testing Reports:
Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)
Drive Motor Kit Typical Setup(.jpg)
Temperature Sensor Installed: KTY84-130 (.PDF)



3KW BLDC Motor
3KW Fan Cooling 3KW Liquid Cooling
3KWFanCooling
3KWLiquidCooling
Buy Now Buy Now
48V 3KW
Fan Cooling
$258
72V 3KW
Fan Cooling
$258
48V 3KW
Liquid Cooling
$278
72V 3KW
Liquid Cooling
$278
Detailed parameters Application Sample
Model: HPM3000B -- High Power BLDC Motor
1. Voltages: 48/72V
2. Rated power: 2-3KW
3. Peak power: 6KW
4. Speed: 3000-5000rpm
5. Rated torque: 10 Nm
6. Peak torque: 25 Nm
7. Efficiency: >90%
8. Dimensions: 18cm dia. 12.5cm height
9. Weight: 8kgs
10. Cooling: air or liquid cooling
HPM3000 (3KW) Motor Performance Data (48V) (.PDF)
3KW BLDC Motor Controller
VEC200A
Buy
VEC200/48Vdc
$260
VEC200/72Vdc
$260
Detailed parameters

Model: VEC200
Voltage:48V/72V/96V
Rated continuous current:80A
Maximum phase current: 200A
Motor control mode:FOC
Driving method:Direct torque control
Dimensions: 170mm(L) x 120mm(W) x 50mm(H)
Weight:1.9kg
VEC200 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)




5KW BLDC Motor
5KW Fan Cooling 5KW Liquid Cooling
3KWFanCooling
3KWLiquidCooling
Buy Now Buy Now
48V 5KW
Fan Cooling
$376
72V 5KW
Fan Cooling
$376
96V 5KW
Fan Cooling
$376
48V 5KW
Liquid Cooling
$396
72V 5KW
Liquid Cooling
$396
96V 5KW
Liquid Cooling
$396
Detailed parameters Application Sample
Model: HPM5000B -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:3KW-7.5KW
Efficeincy: 91%
Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V
Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v Speed: 2000-6000rpm (customizable)
Weight:11Kgs Casing: Aluminium
Length (height): 126mm Diameter: 206mm
Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm)
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
.
Drive Motor Kit Typical Setup(.jpg)  Drawing(.pdf)3D View
Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)
5KW BLDC Motor Controller
VEC200A
Buy
VEC300/48Vdc
$452
VEC300/72Vdc
$452
VEC300/96Vdc
$585
Detailed parameters

Model: VEC300
Voltage:48V/72V/96V
Rated DC BUS current:30A200A
Rated output power:100010000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg)
VEC300 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)




10KW BLDC Motor
10KW Fan Cooling 10KW Liquid Cooling
3KWFanCooling
3KWLiquidCooling
Buy Now Buy Now
48V 10KW
Fan Cooling
$645
72V 10KW
Fan Cooling
$645
96V 10KW
Fan Cooling
$645
48V 10KW
Liquid Cooling
$665
72V 10KW
Liquid Cooling
$665
96V 10KW
Liquid Cooling
$665
Detailed parameters Application Sample
Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: Aluminium
Length (height): 170mm Diameter: 206mm
Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm)
Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)
Drive Motor Kit Typical Setup(.jpg)
10KW BLDC Motor Controller
VEC200A
Buy
VEC500/48Vdc
$598
VEC500/72Vdc
$598
VEC500/96Vdc
$735
Detailed parameters

Model: VEC500
Voltage:48V/72V/96V
Rated DC BUS current:30A200A
Rated output power:100010000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg)
VEC500 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)




20KW BLDC Motor
20KW Liquid Cooling Buy Now
20KWLiquidCooling
48V 20KW
Liquid Cooling
$1590
72V 20KW
Liquid Cooling
$1590
96V 20KW
Liquid Cooling
$1590
Detailed parameters Application Sample
Model: HPM-20KW -- High Power BLDC Motor
Voltage:72V/96V/120V
1. Voltages: 72V-120Vdc
2. Rated power: 20-25KW
3. Peak power: 50KW
4. Speed: 3200-6000rpm
5. Rated torque: 80 Nm
6. Peak torque: 160 Nm
7. Efficiency: >90%
8. Dimensions: 30x30x25cm
9. Weight: 39kgs
10: Cooling: liquid cooling

Drive Motor Kit Typical Setup(.jpg)
  Drawing(.PDF)   3D Drawing(.STEP)
Curve (96V)   Data (96V)






Model: PI-400/VEC --
FOC Controller Programming Kit


Easy Installation for PC/laptop

Easy USB Port Connection


Buy Now ($60)
