Pancake PM Motor -- High Performance at Low Cost

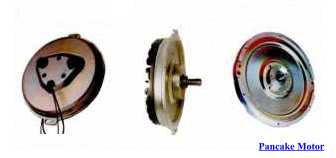

Golden Island Machinery Ltd. JD series pancake shaped PM (permanent magnetic) dc motor has been developed for years by the company. It has a simplified structure, compact size, strong output torque, high energy efficiency (75% - 80%), high reliability and low noise. The PM used are powerful, decreasing cost rare earth magnets. The JD motors can be widely used as the driving hub on electric bicycles, scooters, tricycles, battery powered vehicles and industrial motion solutions. Three voltage (12v/24v/36v) models are available. Thanks to our innovative engineers on minimizing cost and maximizing performance with computer aided design and manufacturing techniques, today our factory is able to mass produce such motors at lowest cost to meet increasing demanding on personal and pollution-free electric transport products.

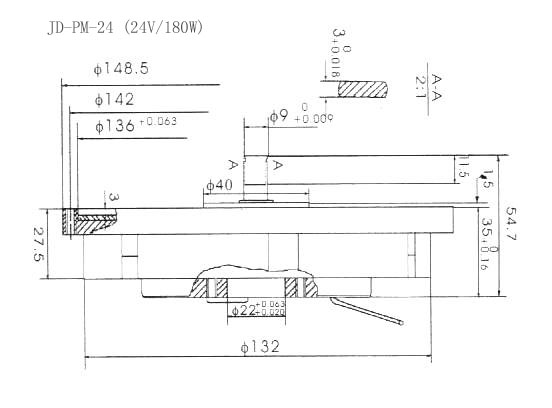

Model:

JD-PM-24

JD-PM-36

Outer Diameter (mm)

158, 120

158

Width(mm)

50

50

Power(W)

180, 75, 70

180

Voltage(V)

24

36

Current(A)

10.8, 5.0, 4.2

7.0

Speed(RPM)

3300,3600,4000

3000

Efficiency (%)

76

76

Overload (Times)

3

3

Weight(Kg)

2.1, 1.2, 0.65

2.3

Export Price*
>=500 units
>=100 and <500 units
<100 units


US$38
US$44
US$48


US$39
US$45
US$49

Useful Info: Power=Torque * Speed(in Radians) , 1HP = 745.7W
1N*m = 141.61 oz*in = 8.85 lb*in = 10,200.0 g*cm



Speed Control Kits: US$20/set (Click to see diagram)

  • Complete Set: Twistgrip speed controller, hand brake, motor controller
  • Soft-start: make start-up smoothly
  • Excessive Current Protection: 11A(36V DC), 14A(24V DC)
  • Low voltage Protection: 31V (36V DC), 20.5V (24V DC)

    • *All prices quoted as F.O.B Shanghai, China
