Cuts Battery Spending and Weight by Half -- GoldenMotor Power Wheelchairs

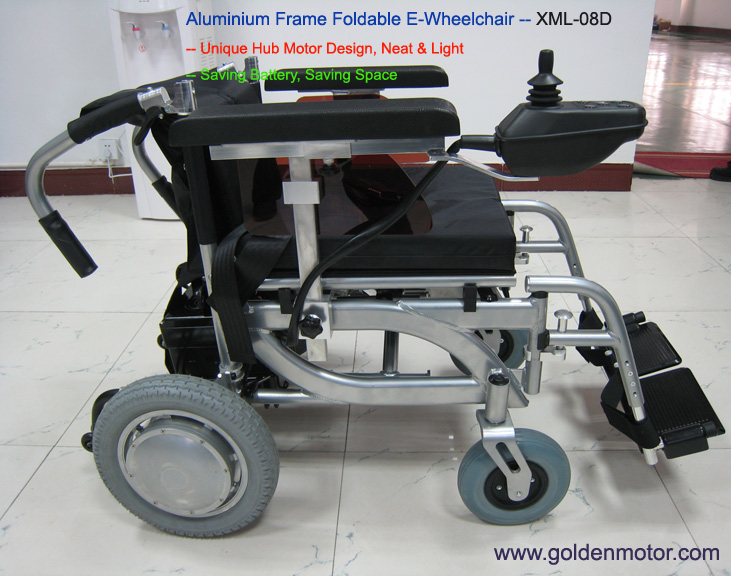

Foldable Electric Wheelchair : XML-08D, Gives You Extra Miles
Simple is Pretty!

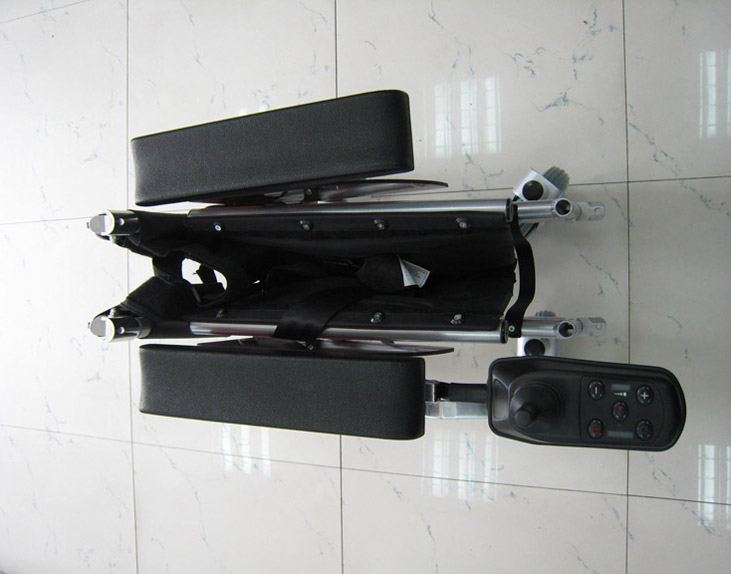

Fold & Carry
Easy Access
Comfortable & Relaxing
Watch e-Chair in Motion [Enable ActiveX scripts to view this movie clip. Format: QuickTime .mov]
Power Wheelchair Specifications:
| Product Model: | XML-08D |
| Frame: | Aluminium |
| Top Speed: | 4mph |
| Travel Range: | up to 25Km |
| Standard Battery Pack: | 24V/20AH (SLA) |
| Rated Motor Power: | 24V/180W each |
| Current Draw at Level: | 2A per motor with EMB enabled |
| Steering Controller: | compact and stylish integral joystick with speed selector,horn and battery gauge,programmable |
| Weight Capacity: | 120Kg |
| Max Incline Rating: | 12 degree |
| Seat and Backrest Material: | fire retardant polyester fibres |
| Safety Features: | in-wheel EMB brake, brake release handle, seat belt |
| Other Features: | convenient back and front pouch for personal storage |
| Colors: | Silver, Black, Blue, Red |
| Gross Weight (with battery): | 44Kg |
| Weight without Battery: | 30Kg |
| Battery with Casing (20AH SLA): | 14Kg, removable |
| Motor Weight: | 7Kg each x 2 |
| Driving Wheel: | 12" pneumatic or solid tyre |
| Front Caster Wheel: | 7.5" solid tyre |
| Turning Radius: | 21" |
| Seat Width: | 16" to 20" adjustable |
| Overall Width: | 26" |
| Armrests: | adjustable width and height |

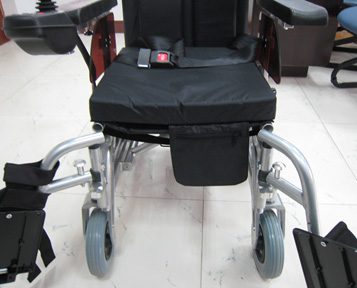

| Footrests: | removable,swing away footrests |
| Chair Packaging Box: | 770 X 430 X 770mm (0.260 cbm), 32Kgs |
| Battery Box: | 200 X 200 X 200mm (0.008 cbm), 14Kgs |
| 20' Container Shipping: | 115 units |
| 40' Container Shipping: | 240 units |
| 40'H Container Shipping: | 270 units |
