For short trips, the efficiency and convenience of electric bikes is hard to beat. Here are some statistics: 40% of all trips are made within two miles of the home, and 50% of workers commute five miles or less to work.
Golden Motor is the pioneer and leader in this industry. Now with Golden Motor bike conversion kits, you can easily convert your ordinary bicycle or trike into electric version.

Electric bike Motor, hub Motor, SmartPie-4,MagicPie-4, bike conversion kit
Youtube link of MagicPie4 Test Drive - Cannada     MagicPie4 - Italy
VEC Controller Programming Software(.rar)     USB Driver in case needed(.rar)

Electric bike Motor, hub Motor, SmartPie-4,MagicPie-4, bike conversion kit
BAC-601 Smart Display User Manual(.pdf)



MagicPie Kits -- World's No.1 Electric Bike Motors! Find Out Why?
CE Certified Ebike Motor by SGS!   MagicPie CE Certificate   MagicPie CE-EMC Report

MagicPie & Smart-Pie Wiring Layout (.jpg)


Electric bike Motor, hub Motor, electric bike kit, bike conversion kit

MagicPie Kit with BUILT-IN Cruise Controller
MagicPie kit un-packing video (YouTube Link)
What Make SmartPie and MagicPie No.1 Bike Conversion Kits
  • Brushless gearless motor: gearless means direct drive, quiet, high efficiency, long working life, maintenance free.
  • Built-in sine-wave controller:smooth riding control, no messy exposed wirings, easy to install, neat looking bikes.
  • Strong torque: acheived by stronger magnets, thinner 0.35mm stacked lamination, innovative motor design, high capacity MOSFETs.
  • Open voltages 24/36/48Vdc: user adjustable power and speed, self upgradable from 24V to 36V or 48V to meet local regulations.
  • Built-in cooling fan: effective heat dissipating, better performance for motor and controller, higher climbing capability.
  • Programmable controller: control parameters programming via USB cable, customizable for different EV applications.

    CE Certified Ebike Motor by SGS!   SmartPie CE Certificate   SmartPie CE-EMC Report

    Bike conversion kits, Electric bike motor, electric bike, hub motor

    What Bike Rider's Experiences about MagicPie Ebike Kits

    "The island i live on is mountains and i climb lots of big hills and the bike performs fantastic. Basically where i live is just like hawaii however we are in the middle of the atlantic ocean instead of the pacific. I live on the north shore of the island and travel thru the mountains to the south shore to the airport i am an air traffic controller at. I always check the motor after a long climb and it does not get hot, warm at most. The performance of the MagicPie and now the SmartPie is by far the best there is." -- Paul Horak

    Electric bike Motor, hub Motor, Smart-Pie Motor,electric bike kit, bike conversion kit
    Smart-Pie Front Motor Drawing (.PDF)     Smart-Pie Rear Motor Drawing (.PDF)




    Order Your Customized E-Bike Kits Here!
    Configure Your Kit Here:
    (cruise controller included)
    Motor Type:
    Rim Size:
    Wheel Type:
    Programming USB Cable:
    Speed Throttle:

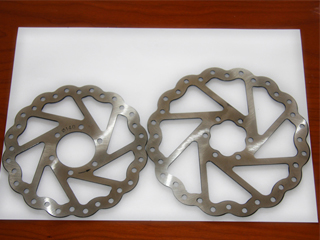

    Disc Brake:
    Speed Cassette:
    Pedal Assist (For Europe):
    Lithium Battery (Free BMS & Charger):
    Order Quantity:
    Country/Region:
    Phone Number (*For Shipping):
    Total Cost: Goods:$  +  Air Shipping Fee:$
    *Phone number MUST be provided for shipping use! It takes 5-8 days to be delivered.

    .....Credit cards via PayPal.....

    e-Bike Conversion Kits:
  • The kit includes motorized wheel,built-in controller,speed throttle, power break lever, wire harness
  • Travel ranges: 30-60 km
  • Speed: 0-45kpm
  • Suitable bike frame: 100mm front fork,or 135mm rear fork drop-out
  • Box Dimensions (Front Wheel Kit): 66cm X 66cm X 19cm, Kit Gross Weight: 11Kg
  • Box Dimensions (Rear Wheel Kit): 66cm X 66cm X 22cm, Kit Gross Weight: 11.5Kg
  • Free Download: MagicPie-3 & Smart-Pie Wiring Layout(.jpg)     MagicPie-2 Wiring Diagram (.jpg)
  • MagicPie Kit Installation Guide (.pdf)




    High Capacity LiFePO4 Battery Packs for e-Bikes -- 24V20AH/36V12AH/48V10AH
    Top quality, lightest weight (5.5kgs), aluminium casing, secure connector, universal charger,...


    Product Characteristics:
  • Non-toxic, non-contaminating
  • Compact in size and light in weight (dimensions)
  • For all high power output applications
  • Can be used under extreme temperature
  • Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
  • Extremely safe: no explosion, no fire under collision, over charged or short circuit

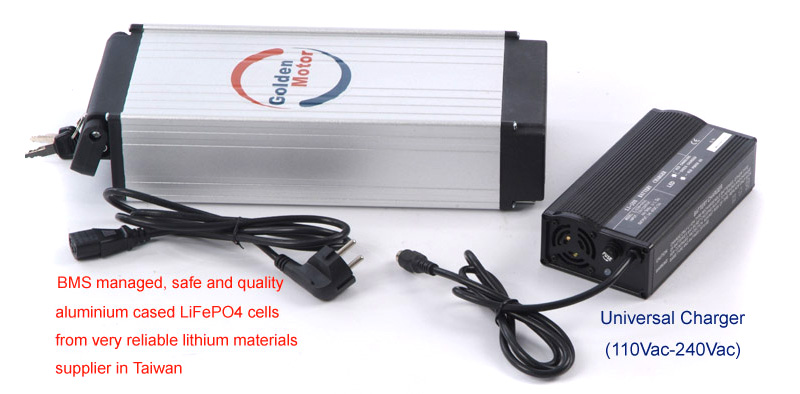

    Lithium Iron Battery Pack with BMS/Charger and Optional Sliding Rack

    Aluminium Casing with Switch/Key -- FREE!
    BMS and 110V-240Vac 2A Universal Charger Included (optional 4A)
    Weight: below 5.5Kgs
    Capacities: 24V/20AH, 36V/12AH, 36V/10AH, or 48V/10AH
    Max Discharge Current: 35A(12AH)/60A(16AH)
    Max Continuous Discharge Current: 20A(12AH)/30A(16AH)
    Charging Cycles: >1000 times
    Ranges(full electric mode): 38Km(36V12AH) or 50Km(48V10AH)

    LFP-3612S
    36V/12AH
    $316/set
    LFP-4810S
    48V/10AH
    $396/set
    LFP-2420S
    24V/20AH
    $349/set
    LBC-48U3
    48V/3A Charger
    $48/unit
    LBC-36U2
    36V/2A Charger
    $35/unit
    LBC-24U2
    24V/2A Charger
    $35/unit
    RAK-001
    Rear Sliding Rack
    $29/unit
    RAK-002
    Seat Post Rack
    $35/unit

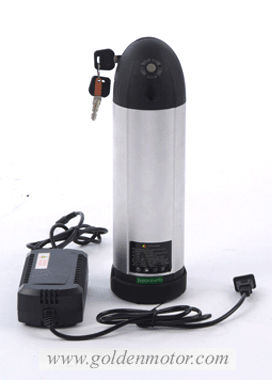

    Water Bottle LiMn Battery Packs -- 36V8AH, 24V10AH
    with mounting bracket, keys, and universal charger


    WBB-3608M
    36V/8AH
    $215/set
    WBB-2410M
    24V/10AH
    $198/set

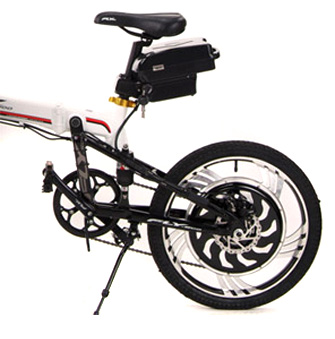

    Frog Style Battery Pack -- 24V10AH, or 36V10AH



    LFP-3610F
    36V/10AH
    $269/set
    LFP-2410F
    24V/10AH
    $198/set
    LBC-36U2
    Extra Charger
    $35/unit
    LBC-24U2
    Extra Charger
    $35/unit




  • Cruise Speed Controller -- Programmable via PC USB port!
    Magic! ... It can drive your ebike even with failed motor hall sensors, throttle, breaker, or all of them failed together!
    It acts as sensorless controller when your motor hall effect sensors fail!



    Cruise Controller User Guide(.pdf)
    Wiring Diagram(.pdf)    (.jpg)    (3D View) -- Download eDrawing to view (12.6Mb)




    Click to see programming user interface screen
    Cruise Controller Parameter Setting Software for Windows XP/Win 7(PD_282_speed.rar, 1.2MB)
    VEC Controller Programming Software(.rar)     USB Driver for VEC controller in case needed(.rar)

    Special Features:
  • Cruise Speed Control
  • Programmable via PC to setup motor control parameters
  • Motor hall sensor failure redundency (Automatically switch to sensorless control)
  • Anti-theft alarm and wheel-locking by detection of vibration
  • True regenerative braking (only effective when you squeeze the hand brake)
  • Other failures redundency (Work with failed throttle and power breaker)
  • Work with multiple voltages: 24V, 36V and 48V with the same controller
  • Report failure components by beeps
  • Motor phase self detection and calibration
  • Support Forward and Reverse Control
  • Excessive Current Protection
  • Low Voltage Protection
  • High Reliability


  • Buy Sample(wholesale prices negotiable)
    BAC-0281P
    36V/50A
    $59/set
    BAC-0282P
    48V/50A
    $59/set
    BAC-0501
    48V/100A
    $95/set
    BAC-0283P
    24V/50A
    $59/set
    PI-0200E
    external
    $33/set
    PI-300I
    internal
    $33/set
    PI-405
    internal
    $33/set
    Please provide your contact phone number for shipping company use!



    eBike Accessories

    Main Specifications:

    Voltage self-adaption:
    24V/36V/48V
    Speed display: real-time,average,maximum
    Trip duration display
    Mileage display: trip and cumulative mileage
    Backlight setting
    PAS level display and setting
    Battery gauge display
    Error display
    Parameter setting: wheel diameter
    BAC-601 LCD User Guide (.pdf)
    BAC-601
    $68/set

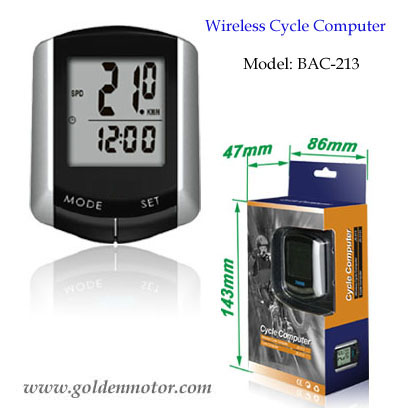

    Main Specifications:

    Clock:12/24H format alternative
    Current speed
    Speed Comparator
    Average Speed
    Maximum Speed
    Relative speed
    Riding Time
    Riding Distance
    Total Riding Distance
    Thermometer
    Sensing Distance:0.9m
    Battery:
    1x CR2032 for transmitter
    1x CR2032 for Receiver
    Size:52X41X17mm
    BAC-213
    $28/set



    Useful Information:

    How to Determine Your Bike Rim Sizes

    Spoke Length Calculation


    Delivery Time Taken:
    5-10 working days for online orders or air shipping orders
    5-20 working days for other orders depending on shipping destinations
