Clean, Efficient, Light Weight, Powerful BLDC Motor Drive Kits

for Electric Car, ATV, Go-Kart, Golf Buggy

brushless motor, bldc motor, electric car motor, 20KW electric car motor, 20KW BLDC Motor


hybrid car kit, Electric Car Motor, electric car conversion, tata nano conversion

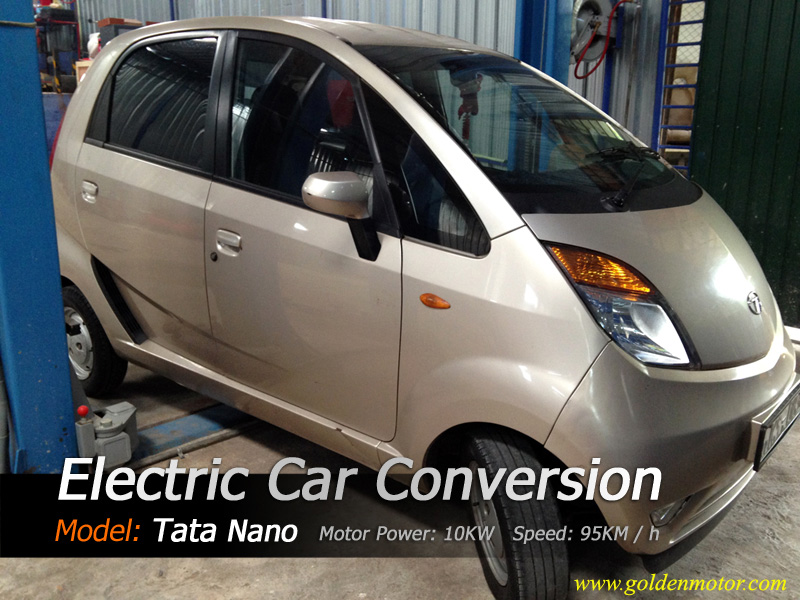

Video of Converted Tata Nano Car (95km/h)

xxx

Another Electric Car Conversion Showcase Video (Youtube.com) from Mr. Murat Orhon


brushless motor, bldc motor, axial flux motor, brushless golf buggy, brushless golf cart, Electric golf buggy, Electric Car Motor

brushless motor, bldc motor, axial flux motor,brushless golf buggy, brushless golf cart, Electric golf buggy, Electric Car Motor

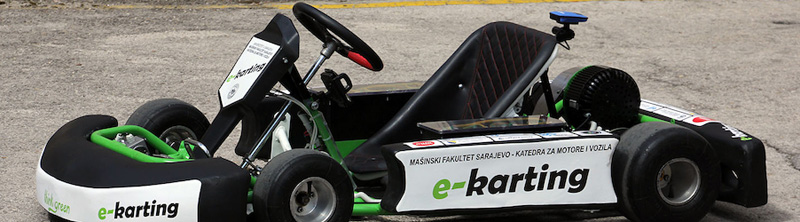

Go-Kart Drived by 5KW BLDC Motor (HPM5000B)

xxx


brushless motor, bldc motor, axial flux motor, brushless golf buggy, brushless golf cart, Electric golf buggy, Electric Car Motor

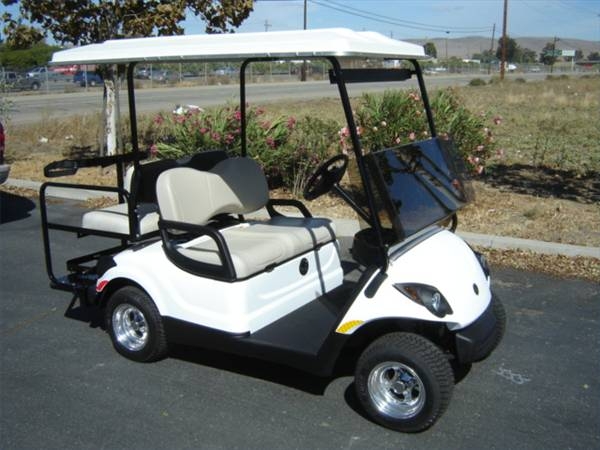

Test Video of Golf Buggy Drived by 5KW BLDC Motor

xxx

CE Certified BLDC Motors by SGS!   HPM10K (10KW) CE Certificate   HPM10K (10KW) CE-EMC Report
HPM5000B (5KW) CE Certificate   HPM5000B (5KW) CE-EMC Report

3D Motor Drawings( .IGS format):
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling   HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling

Motor Drawings(.PDF format):
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling
HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling


High power brushless motor: 48V/72V/96V, 3KW-20KW
Reliable high current controller: 48V/72V/96V, 100A-500A
Integral bridge with differential gear box and brake: for all kind of electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
High capacity battery packs
Other Accessories

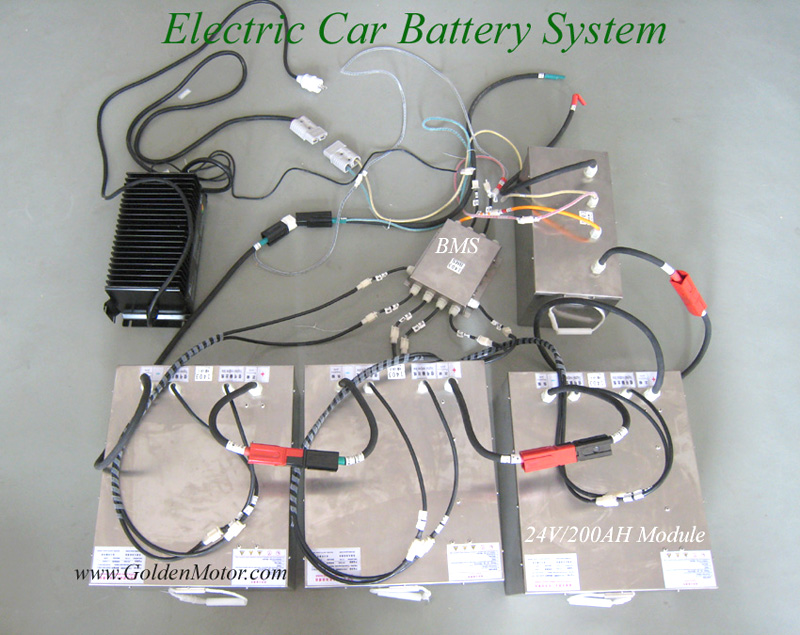

Self-Managed LiFePO4 Battery Module with BMS for Electric Cars



  • Module capacity: 24V200AH
  • Max continuous discharge current: 2C
  • Standard charge current: 0.5C
  • Charging cycle life: >1000 times
  • Stainless Steel Casing

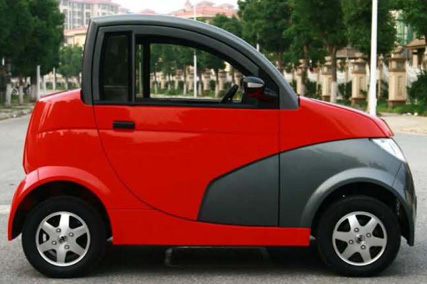

    Electric Car Conversion Kits

    Video of Converted Fiat-500 Drived by 72V10KW Motor

    xxx

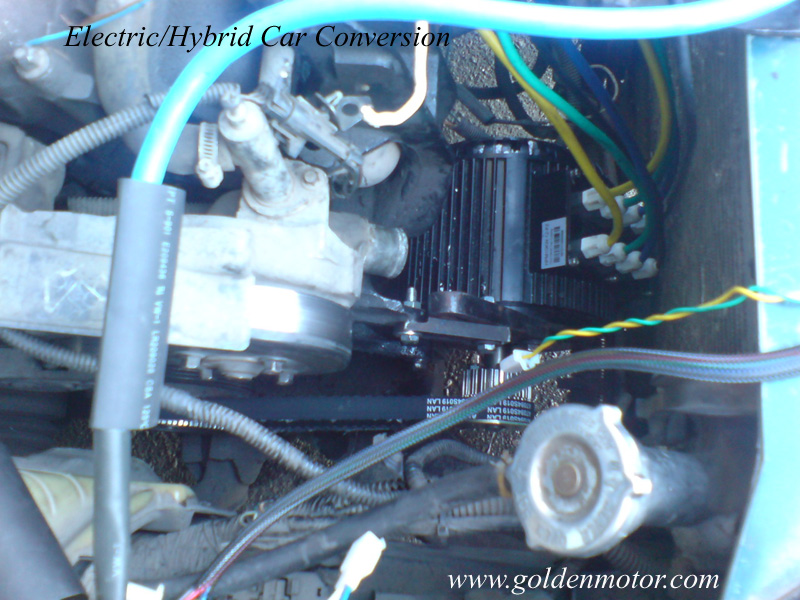

    Electric Motorcycle Motor, Electric Car Motor, electric hybrid car conversion

    hybrid car kit, Electric Car Motor, electric hybrid car conversion

    Electric Motorcycle Motor,HPM10KW, Electric Car Motor

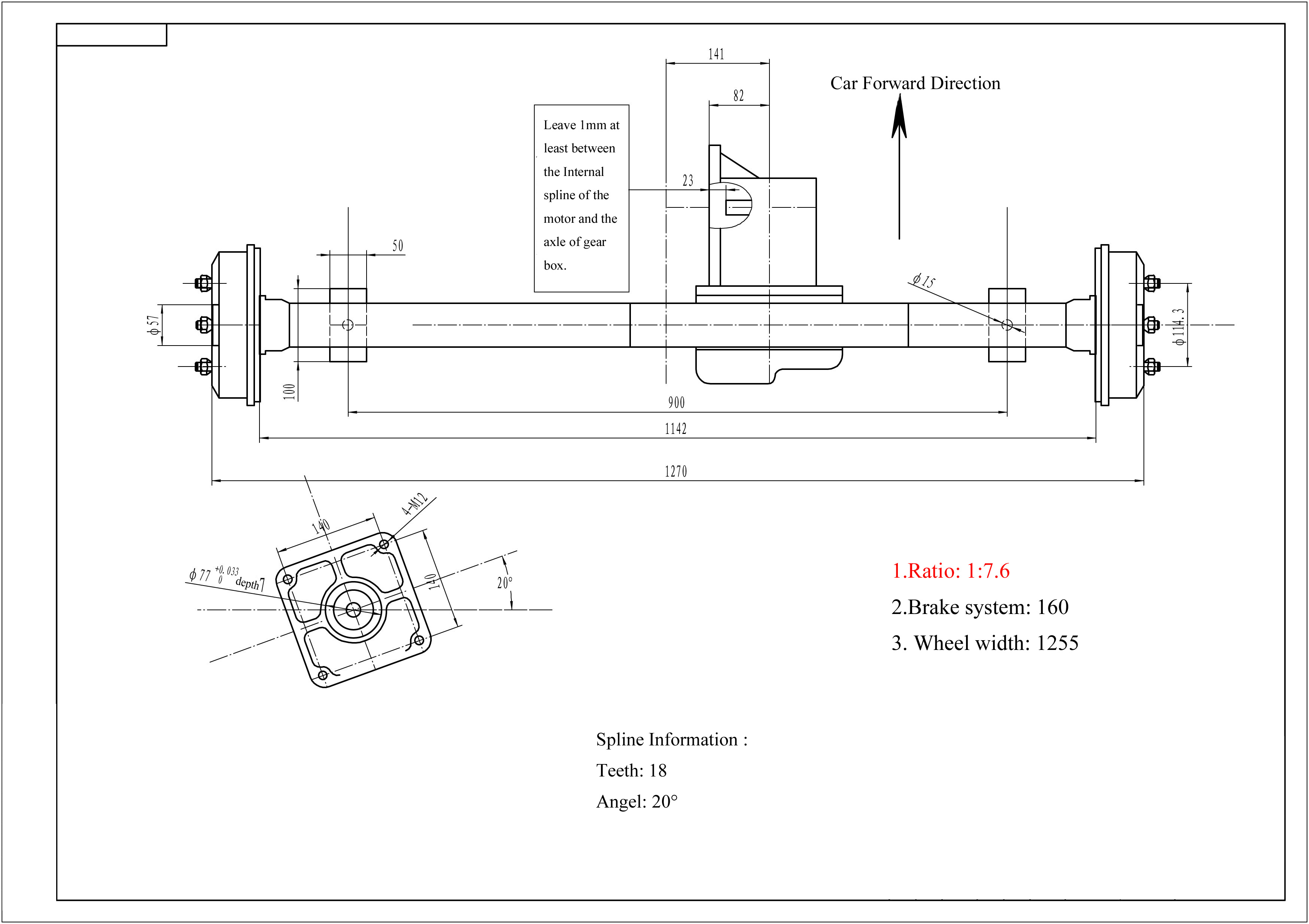

    Differential Gear Bridge Drawing

    brushless motor, bldc motor, axial flux motor, hybrid car kit, Electric Car Motor
    Motor Performance Testing Reports:
    Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)

    Drive Motor Kit Typical Setup(.jpg)

    Temperature Sensor Installed: KTY84-130 (.PDF)


    3KW BLDC Motor

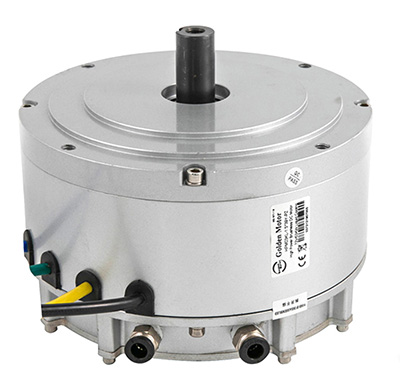

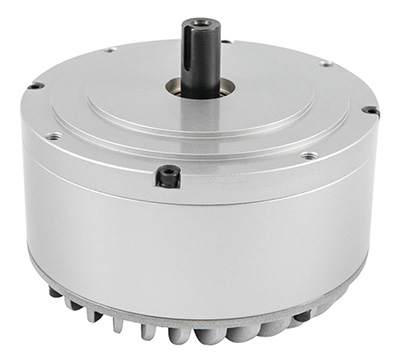

    3KW Fan Cooling 3KW Liquid Cooling
    3KWFanCooling
    3KWLiquidCooling
    Buy Now Buy Now
    48V 3KW
    Fan Cooling
    $288
    72V 3KW
    Fan Cooling
    $288
    48V 3KW
    Liquid Cooling
    $308
    72V 3KW
    Liquid Cooling
    $308

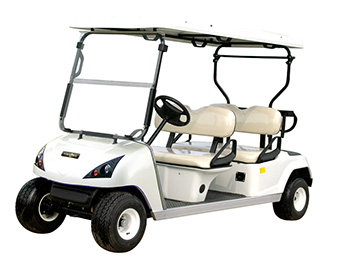

    Detailed parameters Application Sample
    Model: HPM3000B -- High Power BLDC Motor
    1. Voltages: 48/72V
    2. Rated power: 2-3KW
    3. Peak power: 6KW
    4. Speed: 3000-5000rpm
    5. Rated torque: 10 Nm
    6. Peak torque: 25 Nm
    7. Efficiency: >90%
    8. Dimensions: 18cm dia. 12.5cm height
    9. Weight: 8kgs
    10. Cooling: air or liquid cooling
    HPM3000 (3KW) Motor Performance Data (48V) (.PDF)
    3KW BLDC Motor Controller
    VEC200A
    Buy
    VEC200/48Vdc
    $260
    VEC200/72Vdc
    $260
    Detailed parameters

    Model: VEC200
    Voltage:48V/72V/96V
    Rated continuous current:80A
    Maximum phase current: 200A
    Motor control mode:FOC
    Driving method:Direct torque control
    Dimensions: 170mm(L) x 120mm(W) x 50mm(H)
    Weight:1.9kg
    VEC200 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)

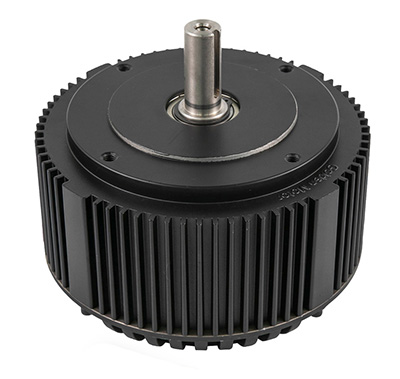

    5KW BLDC Motor

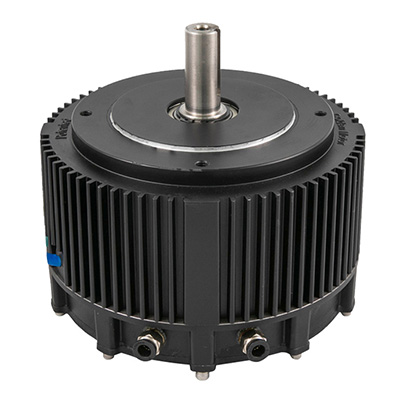

    5KW Fan Cooling 5KW Liquid Cooling
    3KWFanCooling
    3KWLiquidCooling
    Buy Now Buy Now
    48V 5KW
    Fan Cooling
    $446
    72V 5KW
    Fan Cooling
    $446
    96V 5KW
    Fan Cooling
    $446
    48V 5KW
    Liquid Cooling
    $466
    72V 5KW
    Liquid Cooling
    $466
    96V 5KW
    Liquid Cooling
    $466

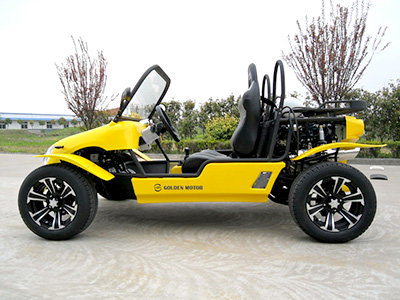

    Detailed parameters Application Sample
    Model: HPM5000B -- High Power BLDC Motor
    Voltage:48V/72V/96V/120V
    Rated Power:3KW-7.5KW
    Efficeincy: 91%
    Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V
    Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v Speed: 2000-6000rpm (customizable)
    Weight:11Kgs Casing: Aluminium
    Length (height): 126mm Diameter: 206mm
    Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm)
    Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
    Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
    .
    Drive Motor Kit Typical Setup(.jpg)  Drawing(.pdf)3D View
    Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)
    5KW BLDC Motor Controller
    VEC200A
    Buy
    VEC300/48Vdc
    $452
    VEC300/72Vdc
    $452
    VEC300/96Vdc
    $585
    Detailed parameters

    Model: VEC300
    Voltage:48V/72V/96V
    Rated DC BUS current:30A~200A
    Rated output power:1000~10000W
    Motor control mode:FOC
    Quiescent operation
    current:20~40mA
    Speed limit:Controlled by motor and configuration
    Driving method:Direct torque control
    Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
    Weight:2.5kg)
    VEC300 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)

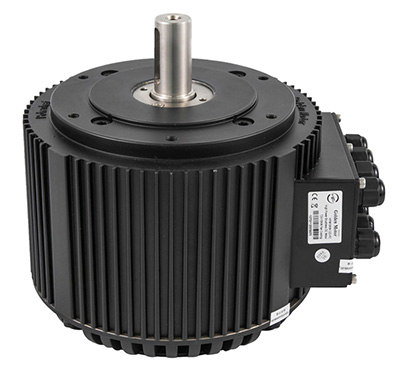

    10KW BLDC Motor

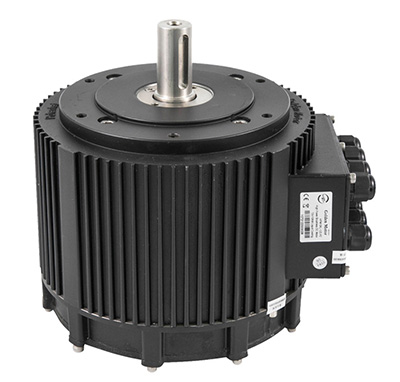

    10KW Fan Cooling 10KW Liquid Cooling
    3KWFanCooling
    3KWLiquidCooling
    Buy Now Buy Now
    48V 10KW
    Fan Cooling
    $765
    72V 10KW
    Fan Cooling
    $765
    96V 10KW
    Fan Cooling
    $765
    48V 10KW
    Liquid Cooling
    $785
    72V 10KW
    Liquid Cooling
    $785
    96V 10KW
    Liquid Cooling
    $785

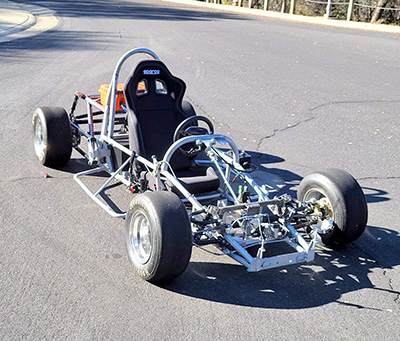

    Detailed parameters Application Sample
    Model: HPM-10KW -- High Power BLDC Motor
    Voltage:48V/72V/96V/120V
    Rated Power:8KW-20KW
    Efficeincy: 91%
    Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
    Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
    Speed: 2000-6000rpm (customizable)
    Weight:17Kgs Casing: Aluminium
    Length (height): 170mm Diameter: 206mm
    Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm)
    Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)
    Drive Motor Kit Typical Setup(.jpg)
    10KW BLDC Motor Controller
    VEC200A
    Buy
    VEC500/48Vdc
    $598
    VEC500/72Vdc
    $598
    VEC500/96Vdc
    $735
    Detailed parameters

    Model: VEC500
    Voltage:48V/72V/96V
    Rated DC BUS current:30A~200A
    Rated output power:1000~10000W
    Motor control mode:FOC
    Quiescent operation
    current:20~40mA
    Speed limit:Controlled by motor and configuration
    Driving method:Direct torque control
    Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
    Weight:2.5kg)
    VEC500 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)

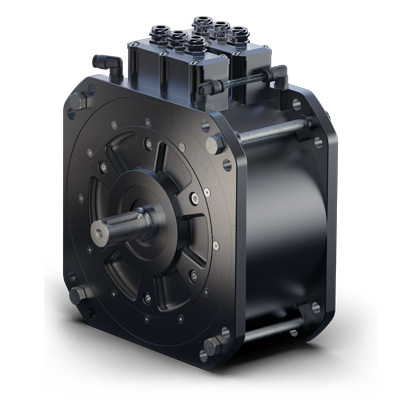

    20KW BLDC Motor
    20KW Liquid Cooling Buy Now
    20KWLiquidCooling
    120V 20KW
    Liquid Cooling
    $1890
    72V 20KW
    Liquid Cooling
    $1890
    96V 20KW
    Liquid Cooling
    $1890
    Detailed parameters Application Sample
    Model: HPM-20KW -- High Power BLDC Motor
    Voltage:72V/96V/120V
    1. Voltages: 72V-120Vdc
    2. Rated power: 20-25KW
    3. Peak power: 50KW
    4. Speed: 3200-6000rpm
    5. Rated torque: 80 Nm
    6. Peak torque: 160 Nm
    7. Efficiency: >90%
    8. Dimensions: 30x30x25cm
    9. Weight: 39kgs
    10: Cooling: liquid cooling

    Drive Motor Kit Typical Setup(.jpg)
      Drawing(.PDF)   3D Drawing(.STEP)
    Curve (96V)   Data (96V)





    Model: PI-400/VEC --
    FOC Controller Programming Kit


    Easy Installation for PC/laptop

    Easy USB Port Connection

    Buy Now ($60)




    Electric Motorcycle Motor controller, Electric Car Motor controller
    Model: HPC300 Series -- Brushless Motor Controller

    Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
    Rated Current (Max):360A/300A/240A
    Weight:2.2Kgs     Dimensions: 192x146x77mm
    Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring
    Wiring Diagram (with contator)
    Technical User Guide
    HPC300H Controller Dimensions

    Buy Now
    48V360A
     $395
    72V300A
     $395
    96V240A
     $520

    Electric Motorcycle Motor controller, brushless controller, Electric Car Motor controller
    Model: HPC500 Series -- Brushless Motor Controller

    Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
    Rated Current (Max):600A/500A/400A
    Weight:2.9Kgs     Dimensions: 192x208x77mm
    Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring
    Wiring Diagram (with contator)
    Technical User Guide
    HPC500H Controller Dimensions

    Buy Now
    48V600A
     $580
    72V500A
     $580
    96V400A
     $690

    Brushless Motor controllers, Electric Motorcycle Motor controller, Electric Car Motor controller
    Model: HPC700 Series -- Brushless Motor Controller

    Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
    Rated Current (Max):840A/700A/560A
    Weight:5.7Kgs     Dimensions: 200x276x85mm
    Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring
    Wiring Diagram (with contator)
    Technical User Guide
    HPC700H Controller Dimensions

    Buy Now
    48V840A
     $830
    72V700A
     $830
    96V560A
     $920

    Most robust and reliable brushless motor controllers for electric cars, motorcycles, and motorboats.



    Model: CA-201 -- HPC Controller Wiring Harness

    23-pin Water-Resistent Connector

    Dynamic Montoring Connector


    Buy Now ($30)


    Electric Motorcycle Motor controller, Electric Car Motor controller, brushless controller Electric Motorcycle Motor controller, Electric Car Motor controller, brushless controller



    Model: PI-400 -- HPC Controller Programming Kit

    Easy Installation for PC/laptop with Windows OS

    Easy USB Port Connection

    Setup Parameters without Power-on Controller

    Monitor Motor Performance Dynamically

    Buy Now ($80)

    Most robust and reliable brushless motor controllers for electric cars, motorcycles, and motorboats.

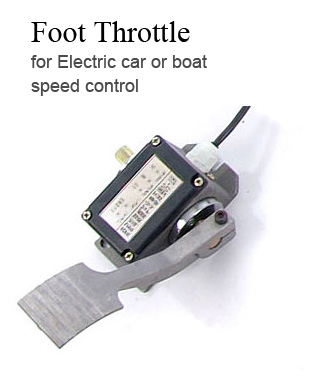

    Foot Throttle (Accelerator)
