High Performance Electric Motorcycle Drive Kits
Drive Your Motorbike up to 100mph

Clean, Quiet, Efficient, Reliable, Light Weight, Compact, and Monstrous Powerful!

VRcross, motorbike conversion kit, motorcycle conversion kit, Electric Car Motor, electric motorcycle, electric motorcycle motor
e-Motorbike Racing Video 1 (https://www.youtube.com/watch?v=tEQ6zZ8Q_WM)
e-Motorbike Racing Video 2 (https://www.youtube.com/watch?v=UJJgYALgnmg&feature=youtu.be)


electric motorcycle motor,hybrid car kit, Electric Car Motor

Demo Videos (3KW BLDC Motor, Max Speed:88km/h, Battery: 72V40AH Lithium, Range: 80km)
Test Ride Video (40MB, .mp4)


brushless motor, bldc motor,motorbike conversion kit, motorcycle conversion kit, axial flux motor, hybrid car kit, Electric Car Motor
Demo Videos (10KW BLDC Motor, Max Speed:120km/h, Battery: 96V40AH Lithium, Range: 80km)
Test Ride Video (177MB, .mp4)




electric motorcycle motor,hybrid car kit, Electric Car Motor

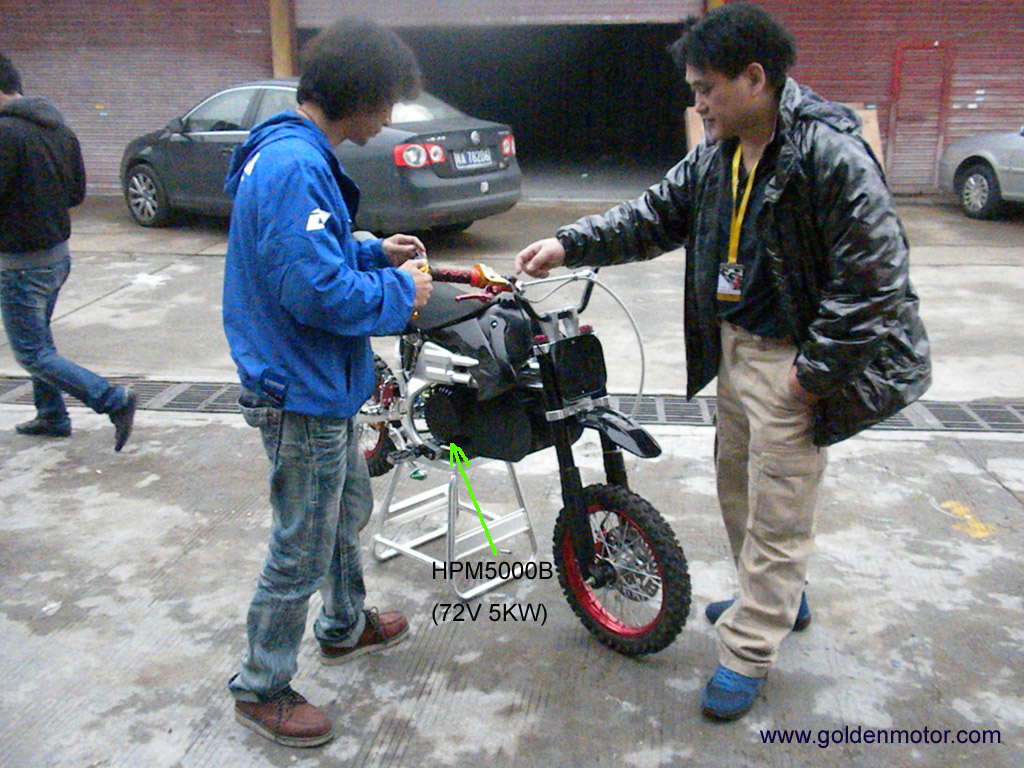

E-Motion's Electric Motorcycle (drived by 5KW BLDC Motor - HPM5000B) Test Ride Video (34MB, .mp4)






Key Components for Electric Motorcycle Conversions
10KW Brushless Motor -- Drive you motorbike up to 100mph!

CE Certified BLDC Motors by SGS!   HPM10K (10KW) CE Certificate   HPM10K (10KW) CE-EMC Report
HPM5000B (5KW) CE Certificate   HPM5000B (5KW) CE-EMC Report

3D Motor Drawings( .IGS format):
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling   HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling

Motor Drawings(.PDF format):
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling
HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling


Motor Performance Testing Reports:
Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)

Drive Motor Kit Typical Setup(.jpg)

Temperature Sensor Installed: KTY84-130 (.PDF)


3KW BLDC Motor
3KW Fan Cooling 3KW Liquid Cooling
3KWFanCooling
3KWLiquidCooling
Buy Now Buy Now
48V 3KW
Fan Cooling
$258
72V 3KW
Fan Cooling
$258
48V 3KW
Liquid Cooling
$278
72V 3KW
Liquid Cooling
$278
Detailed parameters Application Sample
Model: HPM3000B -- High Power BLDC Motor
1. Voltages: 48/72V
2. Rated power: 2-3KW
3. Peak power: 6KW
4. Speed: 3000-5000rpm
5. Rated torque: 10 Nm
6. Peak torque: 25 Nm
7. Efficiency: >90%
8. Dimensions: 18cm dia. 12.5cm height
9. Weight: 8kgs
10. Cooling: air or liquid cooling
HPM3000 (3KW) Motor Performance Data (48V) (.PDF)
3KW BLDC Motor Controller
VEC200A
Buy
VEC200/48Vdc
$260
VEC200/72Vdc
$260
Detailed parameters

Model: VEC200
Voltage:48V/72V/96V
Rated continuous current:80A
Maximum phase current: 200A
Motor control mode:FOC
Driving method:Direct torque control
Dimensions: 170mm(L) x 120mm(W) x 50mm(H)
Weight:1.9kg
VEC200 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)




5KW BLDC Motor
5KW Fan Cooling 5KW Liquid Cooling
3KWFanCooling
3KWLiquidCooling
Buy Now Buy Now
48V 5KW
Fan Cooling
$376
72V 5KW
Fan Cooling
$376
96V 5KW
Fan Cooling
$376
48V 5KW
Liquid Cooling
$396
72V 5KW
Liquid Cooling
$396
96V 5KW
Liquid Cooling
$396
Detailed parameters Application Sample
Model: HPM5000B -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:3KW-7.5KW
Efficeincy: 91%
Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V
Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v Speed: 2000-6000rpm (customizable)
Weight:11Kgs Casing: Aluminium
Length (height): 126mm Diameter: 206mm
Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm)
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
.
Drive Motor Kit Typical Setup(.jpg)  Drawing(.pdf)3D View
Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)
5KW BLDC Motor Controller
VEC200A
Buy
VEC300/48Vdc
$452
VEC300/72Vdc
$452
VEC300/96Vdc
$585
Detailed parameters

Model: VEC300
Voltage:48V/72V/96V
Rated DC BUS current:30A~200A
Rated output power:1000~10000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg)
VEC300 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)




10KW BLDC Motor
10KW Fan Cooling 10KW Liquid Cooling
3KWFanCooling
3KWLiquidCooling
Buy Now Buy Now
48V 10KW
Fan Cooling
$645
72V 10KW
Fan Cooling
$645
96V 10KW
Fan Cooling
$645
48V 10KW
Liquid Cooling
$665
72V 10KW
Liquid Cooling
$665
96V 10KW
Liquid Cooling
$665
Detailed parameters Application Sample
Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: Aluminium
Length (height): 170mm Diameter: 206mm
Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm)
Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)
Drive Motor Kit Typical Setup(.jpg)
10KW BLDC Motor Controller
VEC200A
Buy
VEC500/48Vdc
$598
VEC500/72Vdc
$598
VEC500/96Vdc
$735
Detailed parameters

Model: VEC500
Voltage:48V/72V/96V
Rated DC BUS current:30A~200A
Rated output power:1000~10000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg)
VEC500 Drawing(.STEP)   VEC Controller Guide(.pdf)   VEC Controller Programming Software(.rar)   VEC Controller Wiring(.jpg)




20KW BLDC Motor
20KW Liquid Cooling Buy Now
20KWLiquidCooling
120V 20KW
Liquid Cooling
$1590
72V 20KW
Liquid Cooling
$1590
96V 20KW
Liquid Cooling
$1590
Detailed parameters Application Sample
Model: HPM-20KW -- High Power BLDC Motor
Voltage:72V/96V/120V
1. Voltages: 72V-120Vdc
2. Rated power: 20-25KW
3. Peak power: 50KW
4. Speed: 3200-6000rpm
5. Rated torque: 80 Nm
6. Peak torque: 160 Nm
7. Efficiency: >90%
8. Dimensions: 30x30x25cm
9. Weight: 39kgs
10: Cooling: liquid cooling

Drive Motor Kit Typical Setup(.jpg)
  Drawing(.PDF)   3D Drawing(.STEP)
Curve (96V)   Data (96V)




Model: PI-400/VEC --
FOC Controller Programming Kit


Easy Installation for PC/laptop

Easy USB Port Connection

Buy Now ($60)




Electric Motorcycle Motor controller, Electric Car Motor controller
Model: HPC300 Series -- Brushless Motor Controller

Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
Rated Current (Max):360A/300A/240A
Weight:2.2Kgs     Dimensions: 192x146x77mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring
Wiring Diagram (with contator)
Technical User Guide
HPC300H Controller Dimensions

Buy Now
48V360A
 $395
72V300A
 $395
96V240A
 $520

Electric Motorcycle Motor controller, brushless controller, Electric Car Motor controller
Model: HPC500 Series -- Brushless Motor Controller

Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
Rated Current (Max):600A/500A/400A
Weight:2.9Kgs     Dimensions: 192x208x77mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring
Wiring Diagram (with contator)
Technical User Guide
HPC500H Controller Dimensions

Buy Now
48V600A
 $580
72V500A
 $580
96V400A
 $690

Brushless Motor controllers, Electric Motorcycle Motor controller, Electric Car Motor controller
Model: HPC700 Series -- Brushless Motor Controller

Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
Rated Current (Max):840A/700A/560A
Weight:5.7Kgs     Dimensions: 200x276x85mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring
Wiring Diagram (with contator)
Technical User Guide
HPC700H Controller Dimensions

Buy Now
48V840A
 $830
72V700A
 $830
96V560A
 $920

Most robust and reliable brushless motor controllers for electric cars, motorcycles, and motorboats.



Model: CA-201 -- HPC Controller Wiring Harness

23-pin Water-Resistent Connector

Dynamic Montoring Connector


Buy Now ($30)


Electric Motorcycle Motor controller, Electric Car Motor controller, brushless controller Electric Motorcycle Motor controller, Electric Car Motor controller, brushless controller



Model: PI-400 -- HPC Controller Programming Kit

Easy Installation for PC/laptop with Windows OS

Easy USB Port Connection

Setup Parameters without Power-on Controller

Monitor Motor Performance Dynamically

Buy Now ($80)




High Capacity LiFePO4 Battery Pack for Electric Motorcycles

LiFePO4 Battery Packs, EV Battery, EV Battery Packs

Product Model: LFP4820M
Weight: 12Kgs
Capacity: 48V/20AH
Dimensions: 150*150*300mm
Max Discharge Current: 60A
Max Continuous Discharge Current: 40A
Charging Cycles: >1000 times

Product Model: LFP4830M
Weight: 18Kgs
Capacity: 48V/30AH
Dimensions: 180*190*320mm
Max Discharge Current: 90A
Max Continuous Discharge Current: 60A
Charging Cycles: >1000 times


LFP-4820
48V/20AH
$655/set
...Credit cards via PayPal...

LFP4830M
48V/30AH
$890/set
...Credit cards via PayPal...


Compact LiFePO4 Battery Cells (3.2V), Aluminium Casing
