It's cool, it's fun, it's joy of riding... It's still your bike
Cycling will be redefined with your own DIY ebikes.
It creates incredible experiences for riders.

For short trips, the efficiency and convenience of electric bikes is hard to beat. Here are some statistics: 40% of all trips are made within two miles of the home, and 50% of workers commute five miles or less to work. Sales of electric bikes have spun into high gear - some merchants like Amazon are reporting a 6000% increase since last year.

(Photo Gallery of Converted e-Bikes Contributed by GoldenMotor Riders)


Bike Conversion Kit Installation Instructions Link

BUY NOW to get FREE UPGRADE to Cruise Speed Controller!
+ Free Extra Throttle (You get both Thumb and Twist Type)
You Save $65 -- Promotion End by 28 Feb 2009!
One Stop Shop - All you need to DIY your professional ebike!


 Order your bike conversion kits online via PayPal*
You can configure your kit here:
Rim Size:
Wheel Type:
Motor Power:
Contorller Type:
Speed Throttle:
Pedelec:
Battery Pack:
Order Quantity:
Country/Region:     IP Address Lookup
Phone Number (*For Shipping):
Sub-total Cost: $

*Telephone Number MUST Be Provided for Delivery Use!

.....Credit cards via PayPal.....

e-Bike Conversion Kit:
  • The kit includes motorized wheel,motor controller,speed throttle, power break lever, wire harness
  • Quiet and Reliable Brushless Motor (Performance: HBS-36  HBS-48  Mini Motor)
  • Motor Specifications: 36Vdc/500W/320rpm or 48V/1000W/430rpm
  • High Motor Efficiency: >80%
  • Speed: 0-50kpm Hub Width: 85mm front or 128mm rear hub motor
  • Reinforced Bike rim and tire special for e-bike
  • Box Dimensions (Front Wheel Kit): 66cm X 66cm X 19cm, Kit Gross Weight: 11Kg
  • Box Dimensions (Rear Wheel Kit): 66cm X 66cm X 22cm, Kit Gross Weight: 11.5Kg
  • Free Download (PDF Format):Motor and Controller Wiring Diagram
  • Free Download (PDF Format): HBS Front/Rear Wheel Drawing  Mini motor Drawing
  • Bike Conversion Kit Assembly Online Instructions by Patrick Eberhart
  • Fitting Instruction (Word .doc) by Rod Dilkes



    Mini Motor Drawing(PDF)   Mini Motor Performance Curve(PDF)

    Use Above Configuration Form and Choose Mini Motor to Order

    LiFePO4 Battery Pack for e-Bikes

    Product Characteristics:
  • Non-toxic, non-contaminating
  • Small in size and light in weight
  • For all high power output applications
  • Can be used under extreme temperature
  • Extra long cycle life - 8 times life of Lead Acid and 3 times of NiMH
  • Extremely safe: no explosion, no fire under collision, over charged or short circuit





    Lithium Iron Phosphate Battery Pack with BMS/Charger and Optional Sliding Rack

    Aluminium Casing with Switch/Key -- FREE!
    BMS and 110V-240Vac 2A Universal Charger Included
    Weight: 5.8Kgs
    Capacity: 36V/10AH
    Max Discharge Current: 35A
    Max Continuous Discharge Current: 20A
    Charging Cycles: >1000 times
    LFP-3610S
    36V/10AH
    $339/set
    LBC-36U2
    Extra Charger
    $35/unit
    RAK-001
    Sliding Rack
    $29/unit
    		...Credit cards via PayPal...

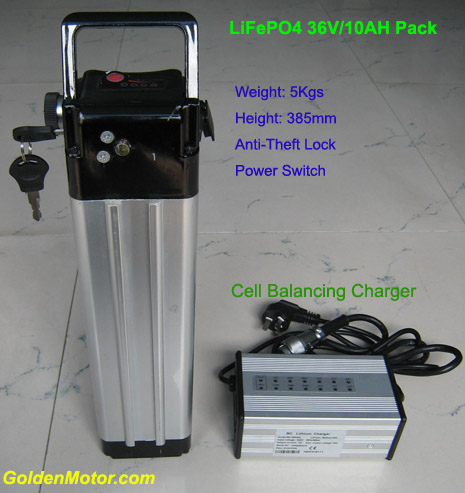

    Lithium Iron Phosphate Battery Pack with Cell-Balancing Charger

    Aluminium Casing with Switch/Key -- FREE!
    Self-cell-balancing Charger Included (Specifications) -- FREE!
    Weight: 5.8Kgs
    Capacity: 36V/10AH
    Dimensions: 385x110x95mm
    Max Discharge Current: 35A
    Max Continuous Discharge Current: 20A
    Charging Cycles: >1000 times
    LFP-3610
    36V/10AH
    $298/set
    LBC-36A2
    Extra Charger
    $55/unit
    		...Credit cards via PayPal...


    High Capacity LiFePO4 Battery Pack with BMS and Charger



    Product Model: LFP-3615
    Weight: 5.1Kgs
    Capacity: 36V/15AH
    Dimensions: 150x110x210mm
    Max Discharge Current: 45A
    Max Continuous Discharge Current: 30A
    Charging Cycles: >1000 times

    Product Model: LFP-4820
    Weight: 10.25Kgs
    Capacity: 48V/20AH
    Dimensions: 265*153*155mm
    Max Discharge Current: 60A
    Max Continuous Discharge Current: 40A
    Charging Cycles: >1000 times
    LFP-3615
    36V/15AH
    $425/set
    LFP-4820
    48V/20AH
    $748/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!


    • Other e-Bike Accessories

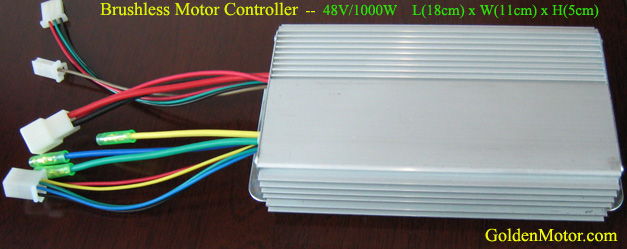

    New Generation Controller -- Technology Breaking Through!
     Magic! ... It can drive your ebike even with failed motor hall sensors, throttle, breaker, or all of them failed together!


    Wiring Diagram(.pdf)

    Special Features:
  • Cruise Speed Control
  • Anti-theft alarm and wheel-locking by detection of vibration
  • Hall sensor failure redundency (Automatically switch to sensorless control)
  • Other failures redundency (Work with failed throttle and power breaker)
  • You can force it to work with lower voltages (e.g 48V to 36V, 36V to 24V)
  • Report failure components by beeps
  • Motor phase self detection and calibration
  • Support Forward and Reverse
  • Excessive Current Protection
  • Low Voltage Protection
  • High Reliability
  • Available for 24V,36V and 48V brushless motors


    • Buy Sample(wholesale prices negotiable)
    BAC-0281
    36V/50A
    $69/set
    BAC-0282
    48V/50A
    $78/set
    BAC-0283
    24V/50A
    $65/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!



    Regenerative Braking Controllers


    Regen Controller Wiring Diagram (.pdf)

  • Regenerative braking (Find How It Works)
  • Over-heat protection
  • Over-current protection
  • Support forward and reverse
  • Motor phases auto-detection and self calibration (Instructions)
  • Enable and disable regenerative braking feature by a switch
  • Programmable for cut-off current, cut-off low voltage, accelerating/decelerating rate
  • Dimensions: 155 x 95 x 45mm

    BAC-0200
    36V/500W
    $85/set
    BAC-0202
    24V/300W
    $73/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!


    Spare Hub Motors and Motorized Wheels


    HBS-48 Performance Curve : HBS-48 Performance Data

  • Brushless Gearless Hub Motor
  • High Power Efficiency
  • High Reliability


    • BAC-0551
    48V/1KW 16" Rear Casted
    $135/set
    BAC-0552
    48V/1KW 18" Rear Casted
    $139/set
    BAC-0550
    48V/1000W Rear Hub
    $125/set
    BAC-0510
    36V/500W Front Hub
    $108/set
    BAC-0511
    36V/500W Rear Hub
    $115/set
    BAC-0513
    24V/250W Front Hub
    $95/set
    BAC-0514
    24V/250W Rear Hub
    $98/set
    Please provide your contact phone number for shipping company use!


    Lead Acid Battery Smart Charger

  • Input AC voltages: 120/240VAC
  • Charging current: 4A


    • BAC-0300
    36V/4A
    $58/set
    BAC-0302
    24V/4A
    $45/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!



    Integrated Thumb Throttle With Battery Gauge




    BAC-0100
    36V
    $12/set
    BAC-0101
    48V
    $15/set
    BAC-0302
    24V
    $10/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!


    Integrated Twist Throttle With Battery Gauge




    BAC-0110
    36V
    $12/set
    BAC-0111
    48V
    $15/set
    BAC-0112
    24V
    $10/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!



    Power Brake Handles




    BAC-0601
    $12/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!



    Spoke Length Calculation

    Delivery Time Taken:
    5-10 working days for online orders or air shipping orders
    5-20 working days for other orders depending on shipping destinations
