Only Acheived by Our Efficient, All-in-One Wheelchair Hub Motors!

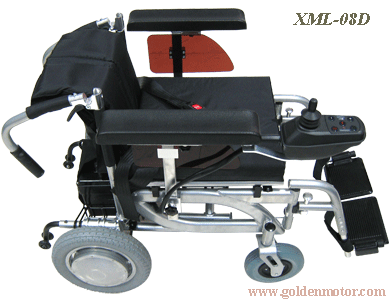

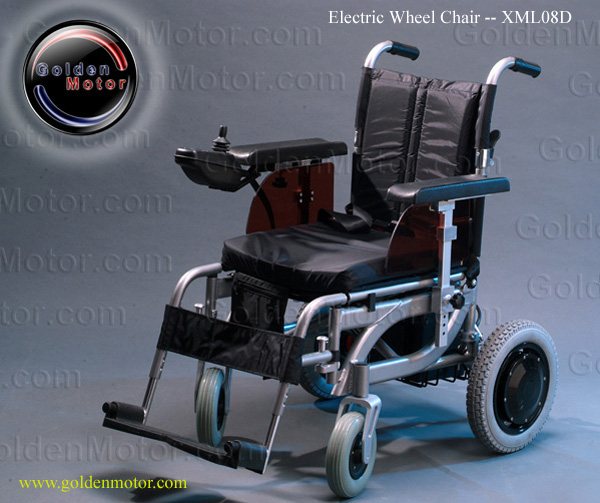

Specifications of Model: XML-08D

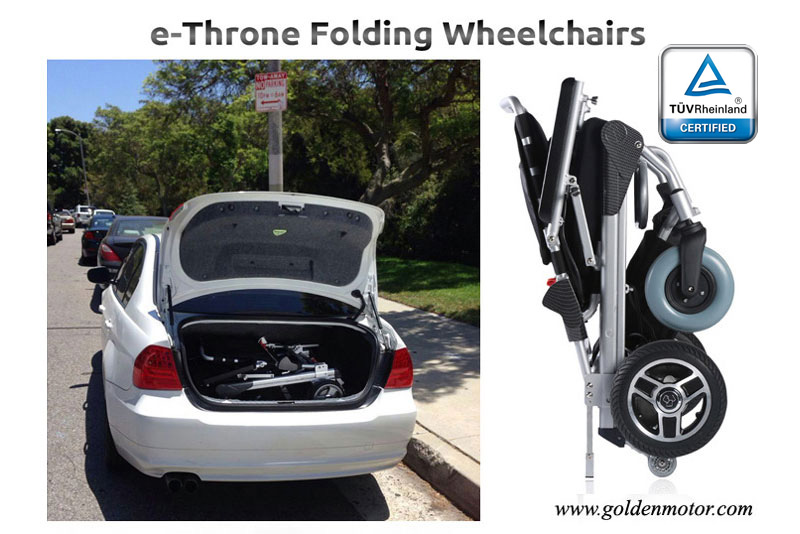

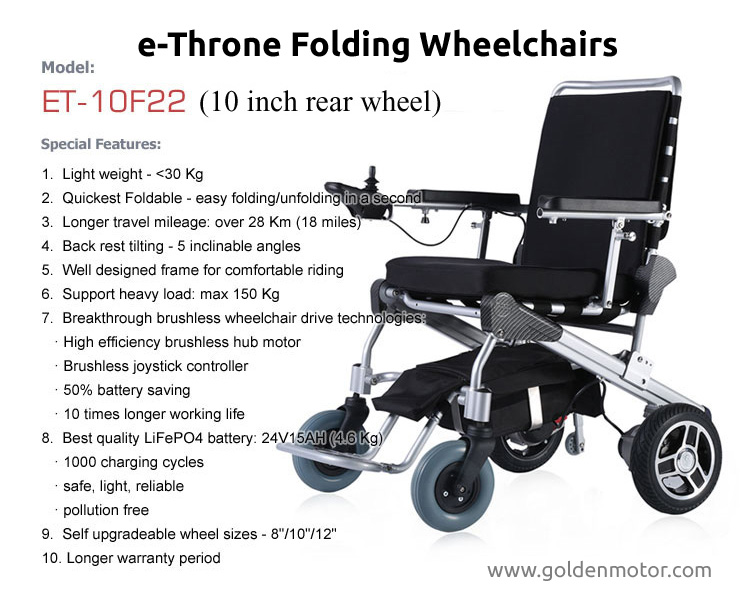

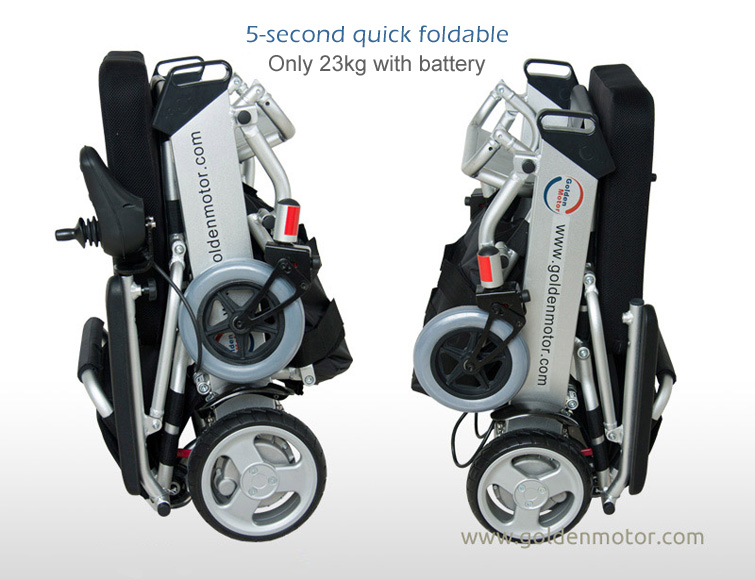

Foldable Power Wheelchairs -- eXtra Miles Series

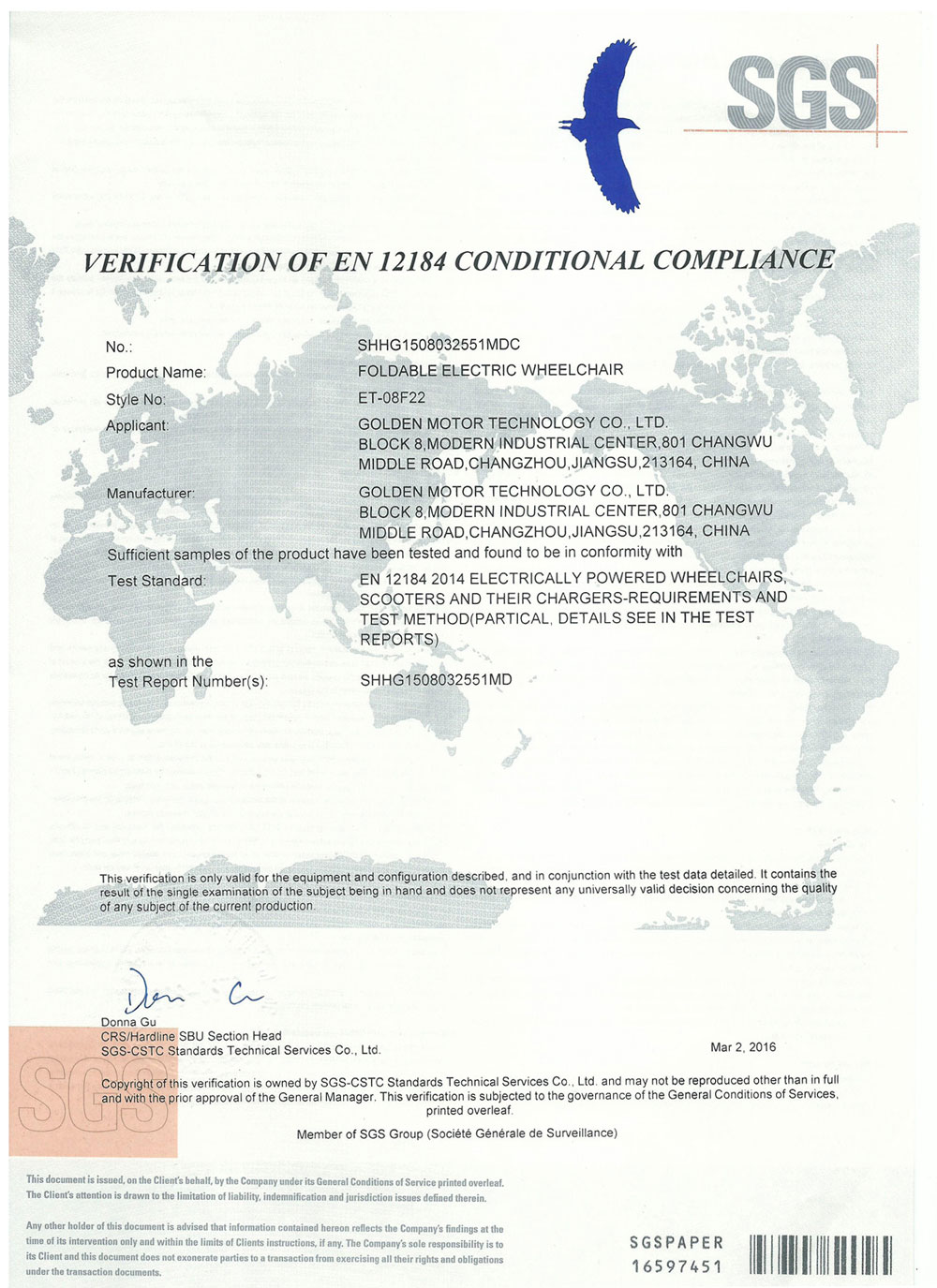

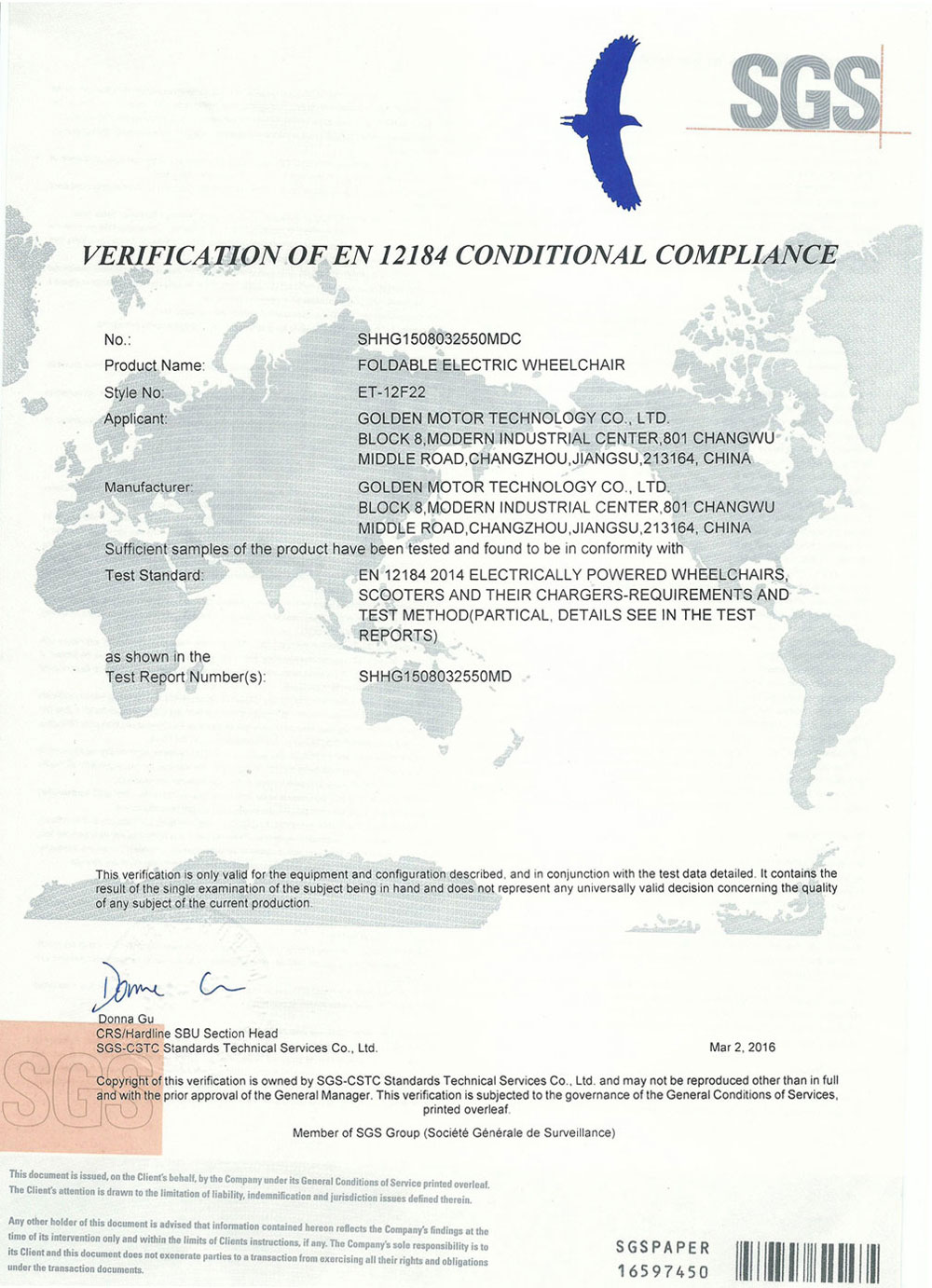

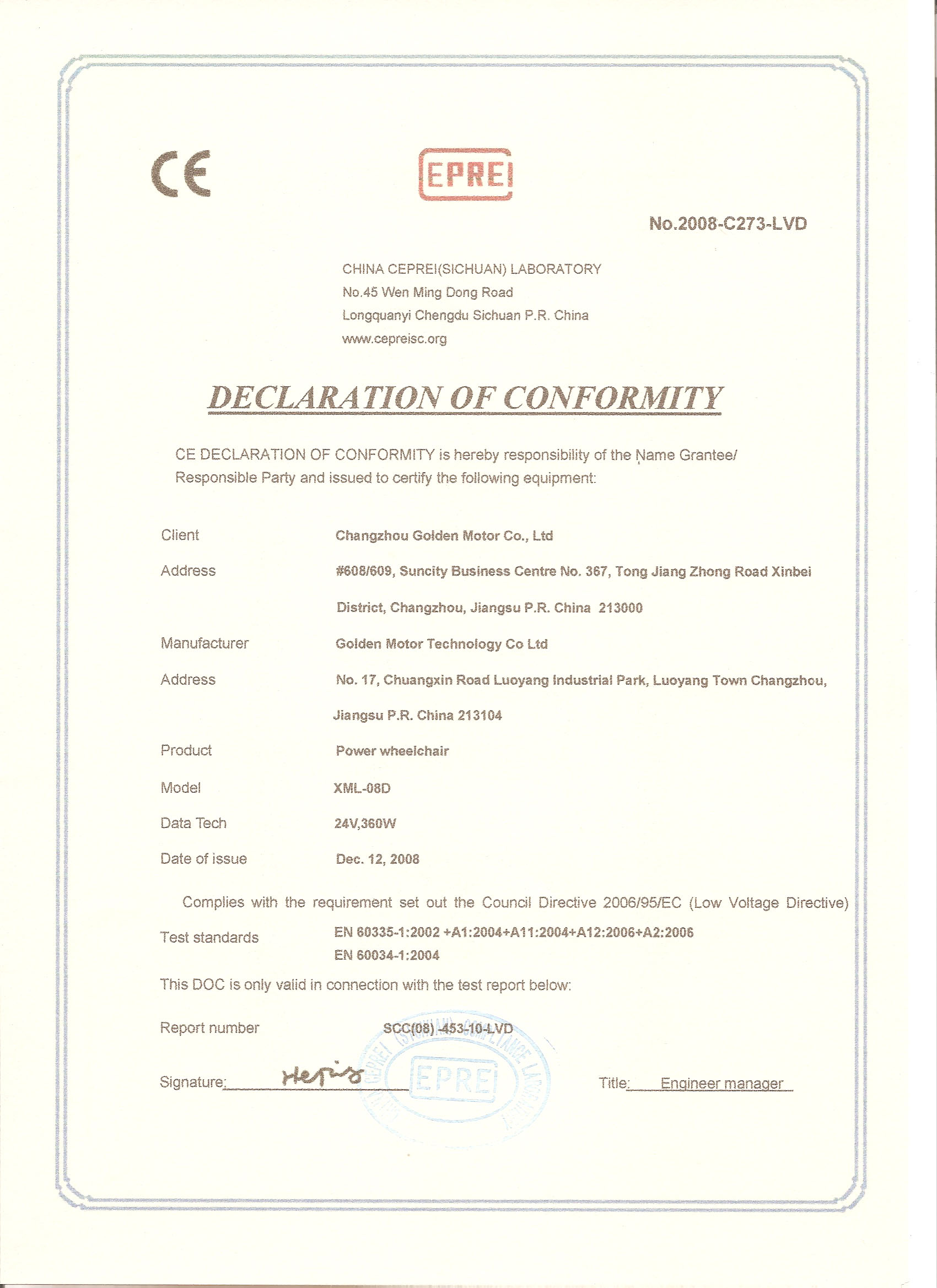

CE Certificates: EMC  LVD  MD

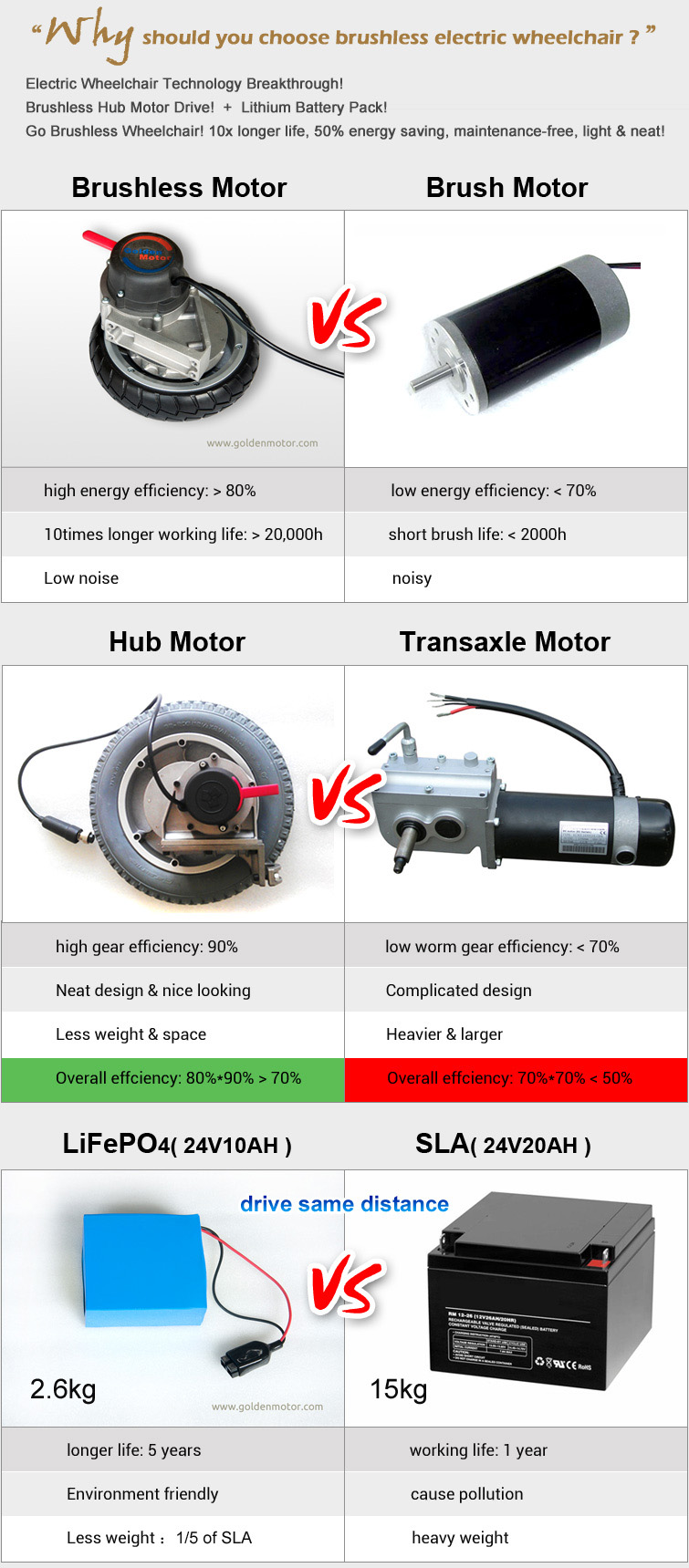

If you are involved with high performance EV applications, there is an important motor technology which is pancake motor (or disc shaped motor) from GoldenMotor. What separates the pancake motor from conventional axial motor is its slotless disc armature. This difference enables pancake motors to deliver a level of performance which is not attainable with conventional ironcore motor designs used by most traditional power wheelchairs in today's market. In addition to performance advantages, pancake motors have a unique flat & compact shape that is best fit for motorized wheel applications, such as power wheelchairs, power scooters. The unique advantages that the slotless pancake motor technology has brought include:

  • Very long operating life
  • Absolutely zero cogging for ultra smooth velocity & torque even at slow speeds
  • Low armature mass for high accelerations and decelerations
  • Low inductance for almost instantaneous torque
  • Very high peak torques for rapid accelerations
  • Flat motor profile for extremely compact size
  • Stamped winding technology for very high reliability and low cost
  • Low Electrical Noise

    Golden Motor Technology Co Ltd just launched its innovative power wheelchairs equiped with above mentioned pancake motors. They come with following unbeatable features:

  • Super integrated motorized wheel drive -- Make your wheelchair Simple, Neat and Light
  • Higher efficiency with our stamped pancake motor technology -- Drive you eXtra Miles
  • Double trip range: Up to 25Km with only 24V/20AH SLA pack (180x76x168mm - 12V20AH each)
  • Lowest power consumption: Less than 4Amps at speed of 4MPH at level
  • Two-motor combined output power: 400W/24V or 600W/36V with the same set of motors
  • Built-in electric-magnetic parking brake (EMB) and manual release handle
  • Climbing up and parking with 110Kg load at 12 degree slope easily
  • Lightest weight (30Kgs w/o battery, 44Kgs with battery)
  • Maintenance-free puncturable tyre
  • High load capacity (180kgs maximum)
  • State of art wheelchair joystick controller
  • Downloads: Motor Performance(PDF) : Wheel Dimensions(PDF) : Mounting Drawing(DWG)


    Test Video of XML-08D Power Wheelchair (13MB)

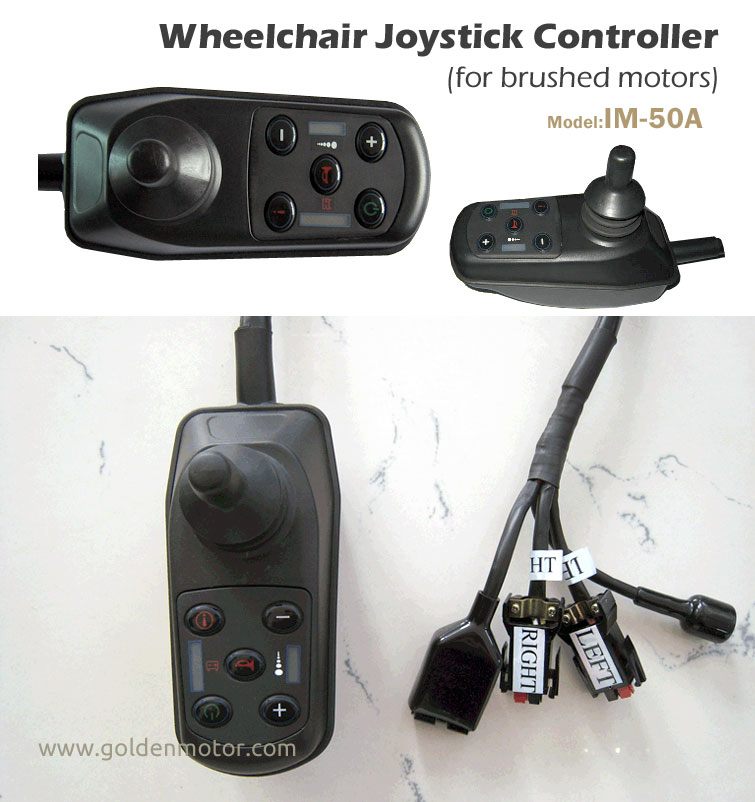

    Wheelchair Joystick Controller (for brushed motors)-- IM-50A

    Click Here to View Large Photo

    USD158 each (24V)
    		..........

    This innovative, stylish wheelchair joystick controller allows you to move the e-chair in any direction smoothly and instantly with its user friendly control panel. It drives dual wheelchair motor intelligently by programmed microchip. You can really feel your fingers empowered with this state of art technology!

  • All-in-One, programmable Controller
  • 24Vdc/36Vdc, Maximum 50Amps
  • 5 Speed Settings
  • Regenerative Braking
  • Parking Brake Open Circuit Detection
  • Parking Brake Manual Release Microswitch Detection
  • Including all connectors to motors and charger
  • Exchangeable to other common joystick controllers
  • Online User Guide (PDF)

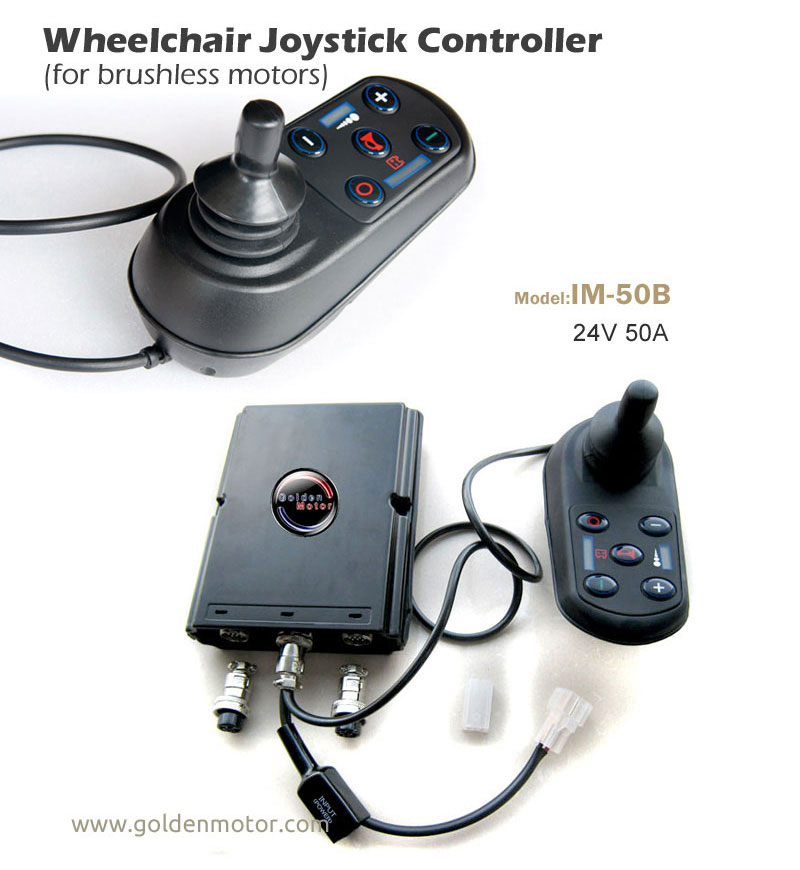

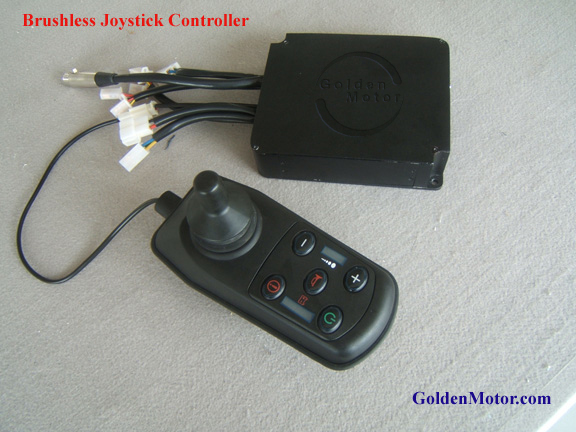

    Brushless Joystick Controller (for dual brushless motors) -- IM-50B



    USD255 each (24V)


    This unique joystick controller drives dual BRUSHLESS motors intelligently by programmed microchip. This extends your wheelchair life up to 10 times longer than current brushed motor powered wheelchairs in the market.

  • All-in-One, programmable Controller
  • 24Vdc, Maximum 50Amps
  • 5 Speed Settings
  • Regenerative Braking
  • Parking Brake Open Circuit Detection
  • Parking Brake Manual Release Microswitch Detection
  • Including all connectors to motors and charger

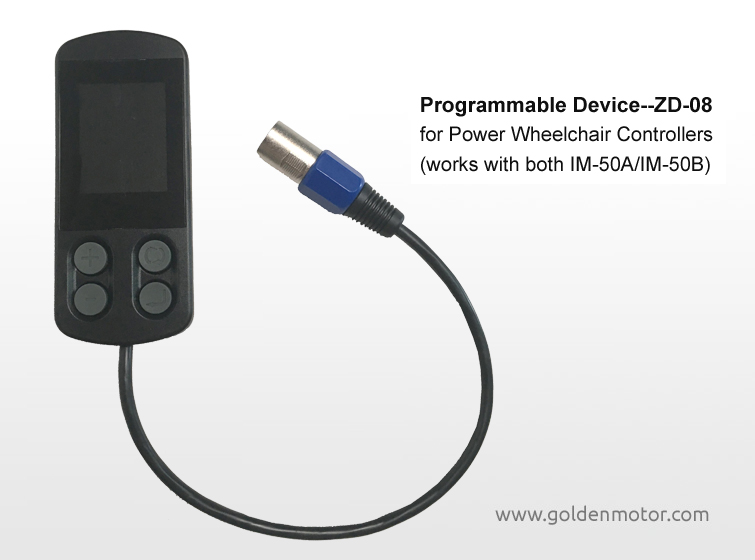

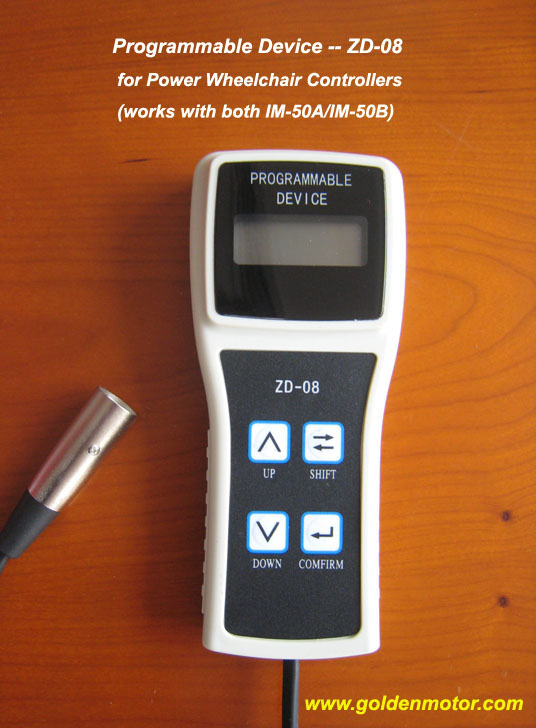

    Power Wheelchair Programmable Device -- ZD-08



    USD78 each


    This device is for OEM manufacturers or distributors to re-program power wheelchair controller parameters for special application needs. It is compatible for both IM-50A and IM-50B power wheelchair controllers.

    Programmable Parameters:
  • 1. Motor acceleration
  • 2. Motor deceleration
  • 3. Steering (turning) acceleration
  • 4. Turning deceleration
  • 5. Undervoltage value
  • 6. Reverse speed setting
  • 7. Maximum speed setting
  • 8. Reverse beep switch
  • 9. EMB brake switch
  • 10. Auto-shutdown timer

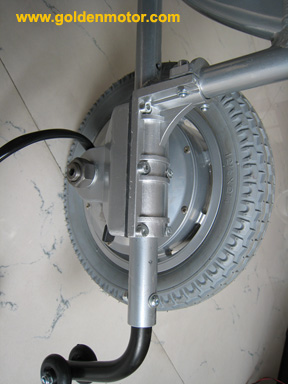

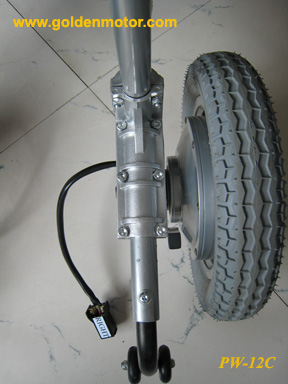

    Never being so easy to mount wheelchair motor like this one

    wheelchair motor, wheelchair hub motor, hub motor

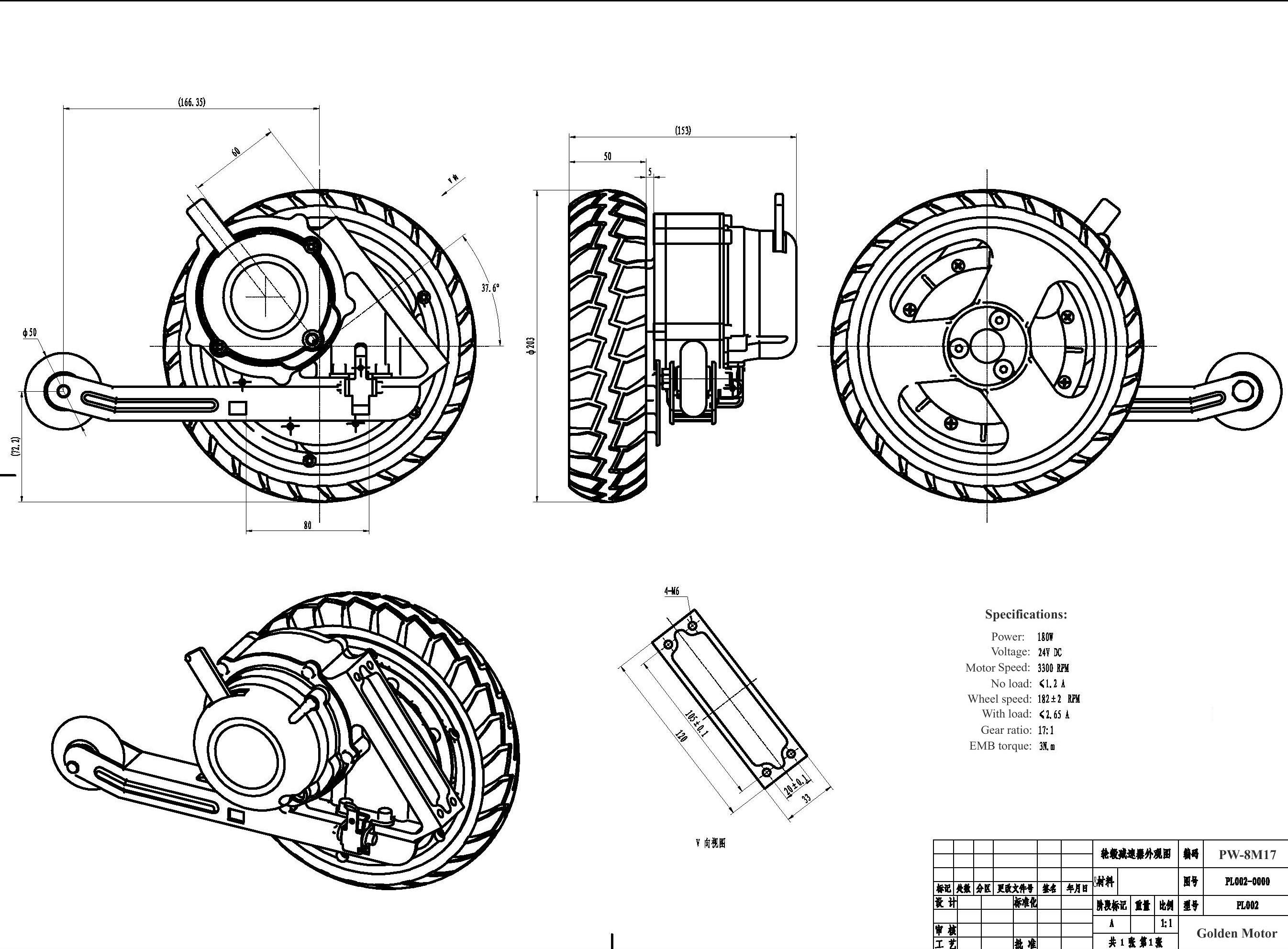

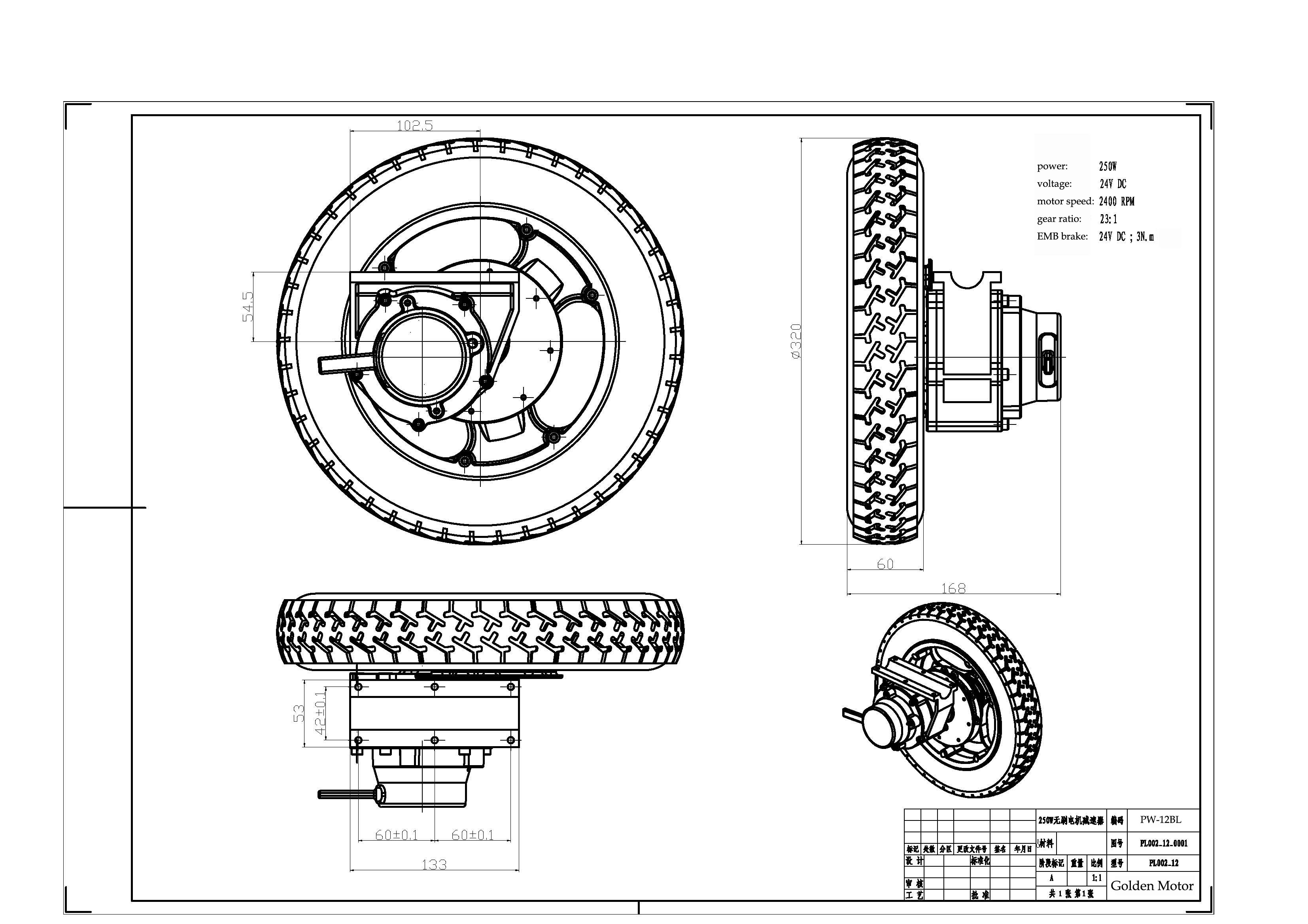

    Click To View Hub Motor Dimensional Drawing (PDF)

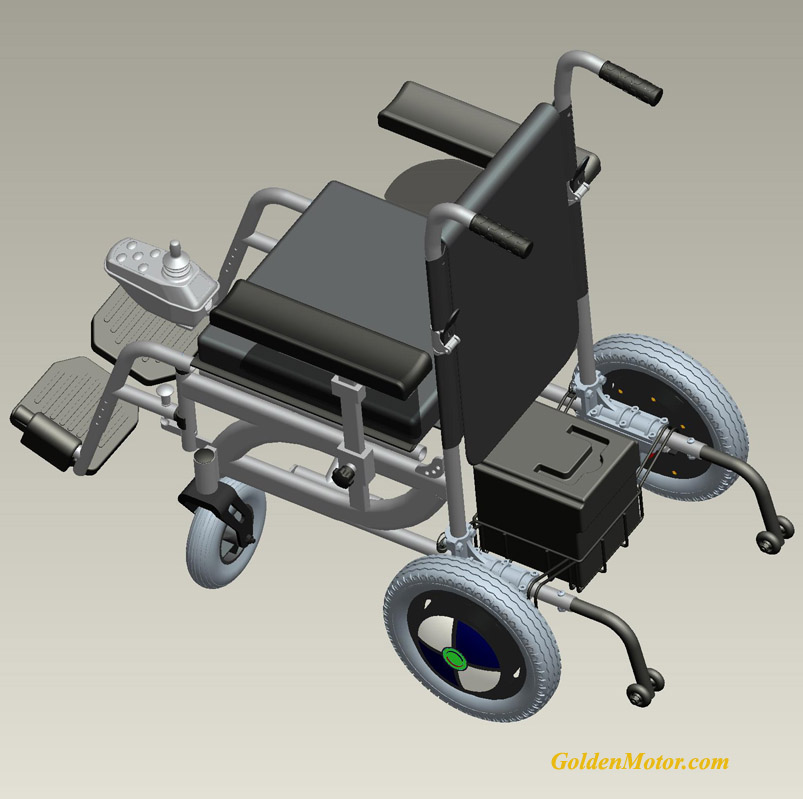

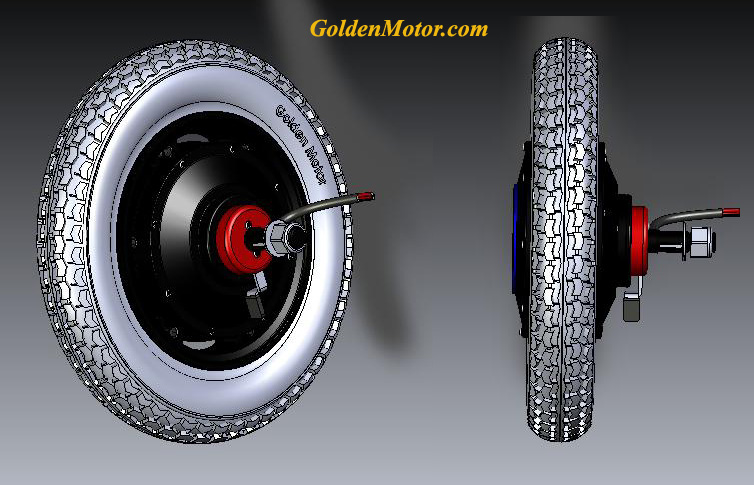

    Download 3D Drawing(SolidWorks Format) -- Download eDrawing to view (12.6Mb)

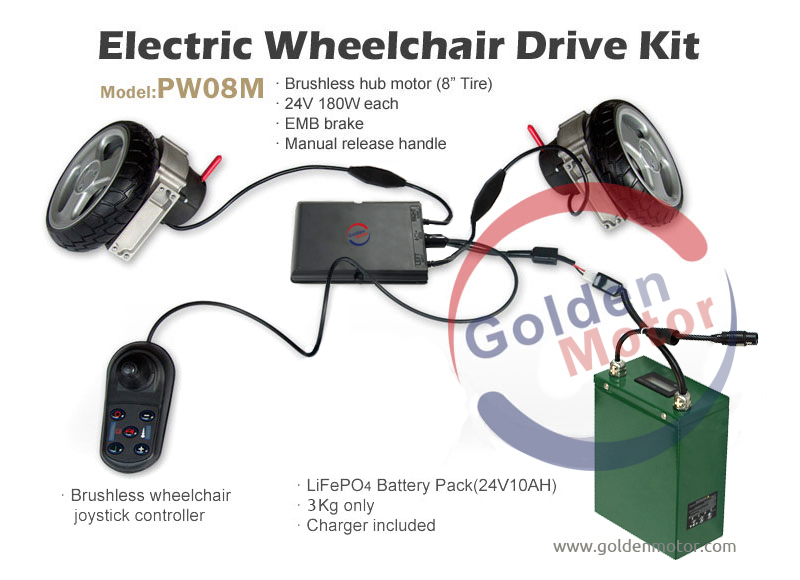

    You can even DIY your own e-Wheelchair now ...


    We are seeking distributors worldwide for our innovative products!

    OEM outsourcing manufacturing are also welcomed. Our wheelchair experts will act quickly for any customization request.

    We can offer our distributors unbeatable lowest wholesale prices thanks to our unique patented hub motor and wheelchair controller technology.
