It's cool, it's fun, it's joy of riding... It's still your bike
Cycling will be redefined with your own DIY ebikes.
It creates incredible experiences for riders.

For short trips, the efficiency and convenience of electric bikes is hard to beat. Here are some statistics: 40% of all trips are made within two miles of the home, and 50% of workers commute five miles or less to work. Now with GoldenMotor kits, you can easily convert your bike or trike into electric version.

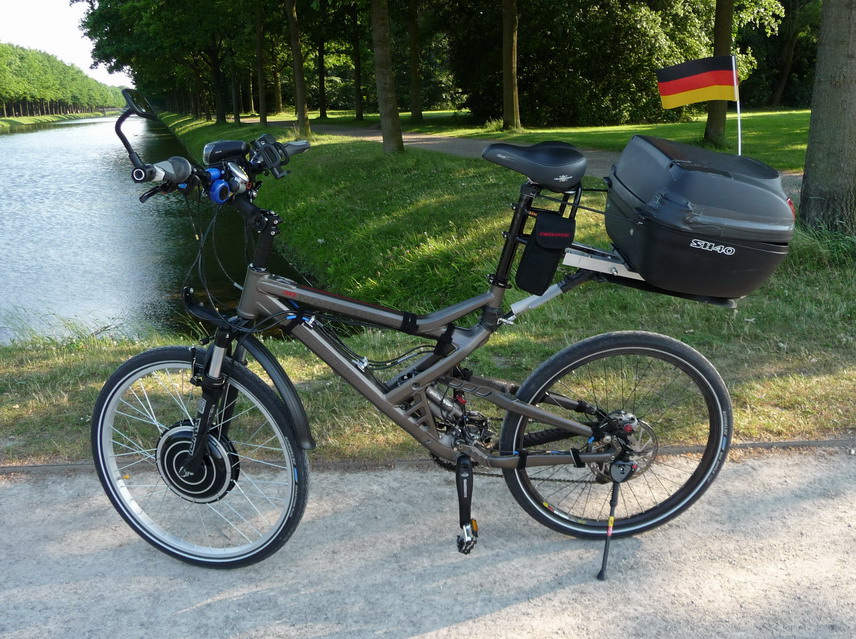

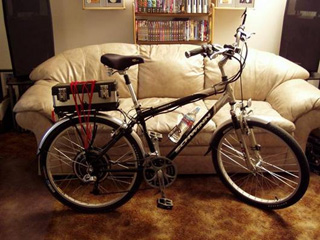

Photo Gallery of DIY e-Bikes/Trikes Contributed by GoldenMotor Riders


Bike Conversion Kit Installation Instructions Link

BUY NOW to get FREE UPGRADE to Cruise Speed Controller!
+ Free Extra Throttle (You get both Thumb and Twist Throttle)
You Save $65 -- Promotion extended to 30 April 2009!
All you need to DIY your professional ebike!


 Order your bike conversion kits online via PayPal*
You can configure your kit here:
Rim Size:
Wheel Type:
Motor Power:
Contorller Type:
Speed Throttle:
Pedal Assist(PAS):
Battery Pack:
Order Quantity:
Country/Region:
Phone Number (*For Shipping):
Sub-total Cost: $

*Telephone Number MUST Be Provided for Delivery Use!

.....Credit cards via PayPal.....

e-Bike Conversion Kit:
  • The kit includes motorized wheel,motor controller,speed throttle, power break lever, wire harness
  • Travel range: 32 km/36V10AH or 48km/36V16AH battery pack
  • Speed: 0-45kpm; Hub Width: 85mm front or 128mm rear hub motor
  • Double wall rim special for e-bike
  • Motor Specifications: 36Vdc/500W/320rpm or 48V/1000W/430rpm
  • Quiet and Reliable Brushless Motor (Performance: HBS-36  HBS-48  Mini Motor)
  • Box Dimensions (Front Wheel Kit): 66cm X 66cm X 19cm, Kit Gross Weight: 11Kg
  • Box Dimensions (Rear Wheel Kit): 66cm X 66cm X 22cm, Kit Gross Weight: 11.5Kg
  • Free Download (PDF Format):Motor and Controller Wiring Diagram
  • Free Download (PDF Format): HBS Front/Rear Wheel Drawing  Mini motor Drawing
  • Installation Guide(.pdf)



    Mini Motor Drawing(PDF)   Mini Motor Performance Curve(PDF)

    Use Above Configuration Form and Choose Mini Motor to Order

    Lithium Ion Battery Pack for e-Bikes -- 36V10AH or 36V16AH

    Product Characteristics:
  • Non-toxic, non-contaminating
  • Compact in size and light in weight (dimensions)
  • For all high power output applications
  • Can be used under extreme temperature
  • Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
  • Extremely safe: no explosion, no fire under collision, over charged or short circuit

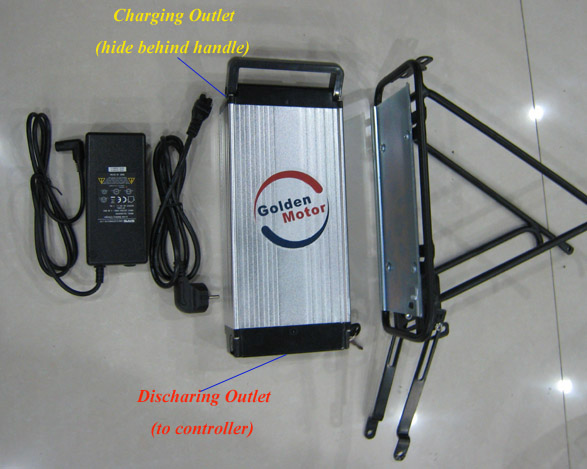

    Lithium Ion Battery Pack with BMS/Charger and Optional Sliding Rack

    Aluminium Casing with Switch/Key -- FREE!
    BMS and 110V-240Vac 2A Universal Charger Included
    Weight: 5.8Kgs
    Capacity: 36V/10AH or 36V/16AH
    Max Discharge Current: 35A(10AH)/60A(16AH)
    Max Continuous Discharge Current: 20A(10AH)/30A(16AH)
    Charging Cycles: >1000 times
    Ranges(full electric mode): 32Km(10AH) or 48Km(16AH)
    LFP-3610S
    36V/10AH
    $296/set
    LFP-3616S
    36V/16AH
    $425/set
    LBC-36U2
    Extra Charger
    $35/unit
    RAK-001
    Sliding Rack
    $29/unit
    		...Credit cards via PayPal...

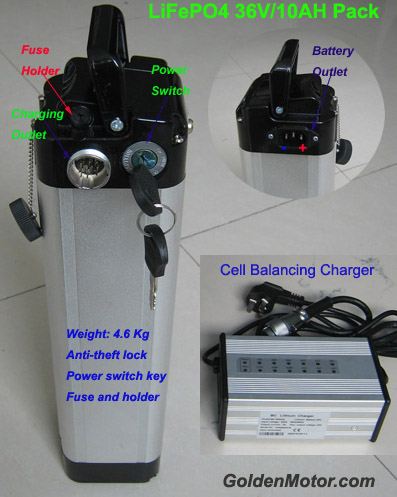

    Lithium Iron Phosphate Battery Pack with Cell-Balancing Charger

    Aluminium Casing with Switch/Key -- FREE!
    Self-cell-balancing Charger Included (Specifications) -- FREE!
    Weight: 5.8Kgs
    Capacity: 36V/10AH
    Dimensions: 385x110x95mm
    Max Discharge Current: 35A
    Max Continuous Discharge Current: 20A
    Charging Cycles: >1000 times
    LFP-3610
    36V/10AH
    $258/set
    LBC-36A2
    Extra Charger
    $55/unit
    		...Credit cards via PayPal...

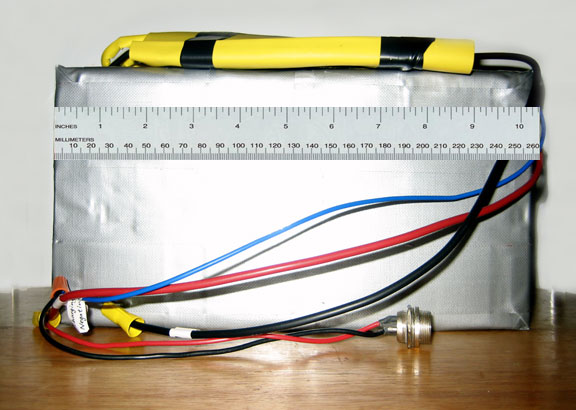

    High Capacity LiFePO4 Battery Pack with BMS and Charger



    Product Model: LFP-4820
    Weight: 10.25Kgs
    Capacity: 48V/20AH
    Dimensions: 265*153*155mm
    Max Discharge Current: 60A
    Max Continuous Discharge Current: 40A
    Charging Cycles: >1000 times
    LFP-3615
    36V/15AH
    $380/set
    LFP-4820
    48V/20AH
    $558/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!


    • Other e-Bike Accessories

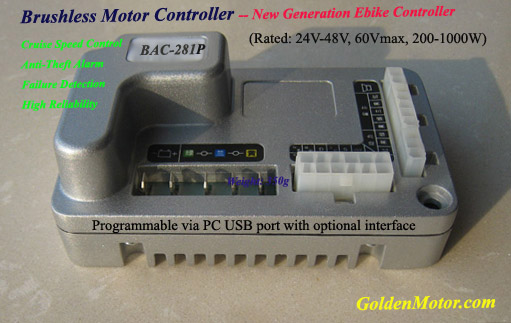

    New Generation Controller -- Technology Breaking Through!
     Magic! ... It can drive your ebike even with failed motor hall sensors, throttle, breaker, or all of them failed together!


    Wiring Diagram(.pdf)
    Wiring Diagram(.pdf)    (.jpg)    (3D View) -- Download eDrawing to view (12.6Mb)

    Special Features:
  • Cruise Speed Control
  • Motor hall sensor failure redundency (Automatically switch to sensorless control)
  • Anti-theft alarm and wheel-locking by detection of vibration
  • Other failures redundency (Work with failed throttle and power breaker)
  • You can force it to work with lower voltages (e.g 48V to 36V, 36V to 24V)
  • Report failure components by beeps
  • Motor phase self detection and calibration
  • Support Forward and Reverse Control
  • Excessive Current Protection
  • Low Voltage Protection
  • High Reliability
  • Available for 24V,36V and 48V brushless motors


    • Buy Sample(wholesale prices negotiable)
    BAC-0281
    36V/50A
    $65/set
    BAC-0282
    48V/50A
    $74/set
    BAC-0283
    24V/50A
    $58/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!



    Regenerative Braking Controllers


    Regen Controller Wiring Diagram (.pdf)

  • Regenerative braking (Find How It Works)
  • Over-heat protection
  • Over-current protection
  • Support forward and reverse
  • Motor phases auto-detection and self calibration (Instructions)
  • Enable and disable regenerative braking feature by a switch
  • Programmable for cut-off current, cut-off low voltage, accelerating/decelerating rate
  • Dimensions: 155 x 95 x 45mm

    BAC-0200
    36V/500W
    $85/set
    BAC-0202
    24V/300W
    $73/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!



    Integrated Thumb Throttle With Battery Gauge




    BAC-0100
    36V
    $12/set
    BAC-0101
    48V
    $15/set
    BAC-0302
    24V
    $10/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!

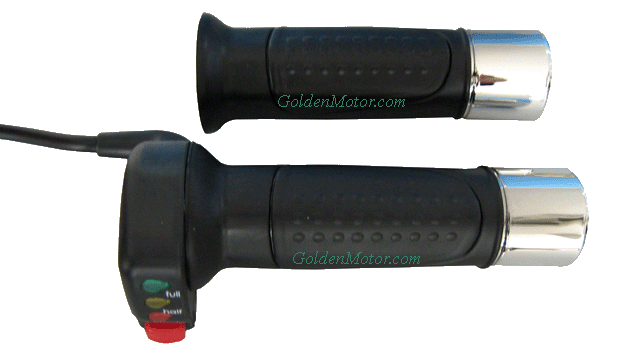

    Integrated Twist Throttle With Battery Gauge




    BAC-0110
    36V
    $12/set
    BAC-0111
    48V
    $15/set
    BAC-0112
    24V
    $10/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!

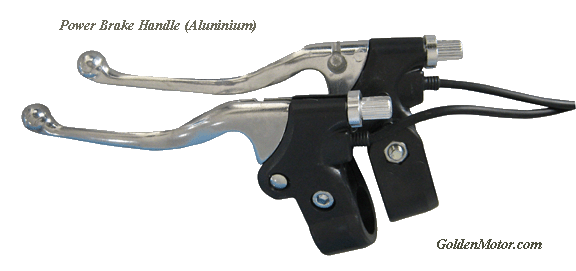

    Power Brake Handles




    BAC-0601
    $12/set
    		...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!



    Spoke Length Calculation

    Delivery Time Taken:
    5-10 working days for online orders or air shipping orders
    5-20 working days for other orders depending on shipping destinations
